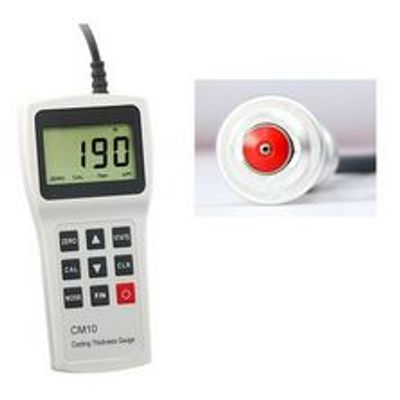

Mindfull - Model CM10 -Coating Thickness Tester
Coating thickness tester CM10 Series Coating Thickness Gauges adopt two modes of coating thickness measurement: magnetic and eddy current. Magnetic Method (Fe) is for measuring the thickness of non- magnetic coatings on steel, iron and other ferromagnetic metal substrates. Eddy Current Method (NFe) is for measuring the thickness of non-conductive coatings on copper, aluminum, stainless steel and other non-ferromagnetic substrates. Application:Painting,Varieties of Anti-Corrosion Coating,Powder Spraying,Plastic,Rubber,Synthetic Material, Phosphate Coating,Chromium,Zinc,Aluminum,Tin,Cadmium,Oxide Film and Phosphate Film coating thickness measurement, etc.
Most popular related searches
coating thickness monitoring
thickness monitoring
eddy current measurement
eddy current magnet
film thickness measurement
metal thickness monitoring
current sensor
chromium
phosphate measurement
phosphate monitoring
- CM10F and CM10FH can measure non-magnetic coating thickness on magnetic metal by magnetic measurement method.
- CM10N can measure non-conductive coating thickness on non-magnetic metal by eddy current measurement.
- CM10FN can apply both magnetic method and eddy current method.
- CM10 sensor is replaceable,can be equipped with 3 different probes.

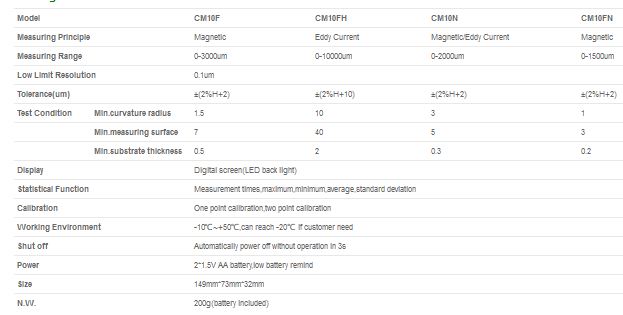

- The maximum thickness measured by CM10F is 3mm,max thickness measured by CMFH is 10mm,maximum thickness measured by CM10N is 2mm,max thickness measured by CM10FN is 1.5mm.
- CM10 series coating thickness tester is with high and low resolution.
