Ecograce - Mine Tailing Sewage Filter Press Filter Cloth - Polypropylene Filter Fabrics

• Place of Origin: CHINA
• Brand Name: ECOGRACE
• Certification: ISO / 9001 , SGS
• Model Number: 1600 mmx 1600 mm

Payment & Shipping Terms:

• Minimum Order Quantity: 50 sets
• Price: 10 -50 USD / PCS
• Packaging Details: Polybags with pallets
• Delivery Time: 2-6 WEEKS
• Payment Terms: Western Union, MoneyGram, L/C, T/T, D/A, D/P
• Supply Ability: 2000 sets / day

ECOGRACE Filter Cloth Liquid Solid Separation Filter Cloth is mainly applied for Mining industry , Chemical Industry, Food industry. Mineral tailing concentration, Wastewater treatment , sludge sewage dewatering, kaolin clay , quarry , granite production process,etc.

Mining Industry Filter Press Cloth Dry Cake Clear Filtration 1500x1500mm

Filter press is increasingly applied by more and more industries such as Metallurgy, Mining, Printing as an effective and affordable equipment of solid-liquid separation. As an essential factor of filter press, filter cloth plays an important role to ensure clear filtration, dry filter cake and short filter cycle.

Filter cloth selection mainly depends on

• Materials.
• Yarn Types.
• Weave Patterns.

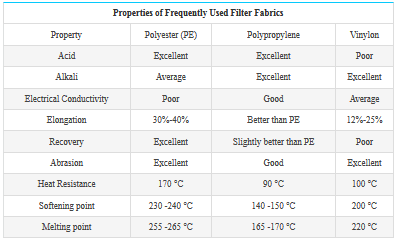

Materials:

Polypropylene Filter fabric:

Polypropylene Filter fabric is characterized by sleekness, excellent permeability and nil moisture absorption. Its excellent cake release will significantly shorten cleaning time as well as filter cycle. It also has excellent resistances against most acids and alkalis. Its constant working temperature is rated at 280 °F.

Nylon filter cloth:

Nylon filter cloth features optimum abrasive resistance and strong alkali resistance. It is often found in miner and coal industries for its best abrasion proof. The only shortage is that its chemical instability under high temperature when it will release toxic substance and pollute the solutions. So, nylon filter cloth is not accepted by food & beverage and pharmaceutical.

Polyester (PE) filter cloth:

The prominent property for polyester fabric is its strongest acid resistance among existing synthetic fabrics. It is widely recognized as an outstanding and popular filter cloth for its high operating temperature up to 302 °F, high tensile strength and good elongation.

Vinylon filter cloth:

Thanks to its strongest alkali resistance, vinylon filter cloth is suitable for caustic condition. Its working temperature is less than 140 °F.

ECOGRACE Filter Cloth :

Filter Cloth For plate filter press , Belt Filter Press , Disc Filter , etc.

• Filter Cloth : Polyester Filter Cloth , Polypropylene Filter Cloth , PA Filter Cloth ,
• Weight standard: 250g / sqm - 900 g / sqm . Make to order is also accepted.
• Polyester Monofilament Filter Cloth are widely applid in sugar plant and iron ore industry filter press .
• Non woven felt filter cloth , 600- 800 gsm weight.

Filter Cloth Material :

• Polyester(Terylene/PET) Filter Cloth.
• Polypropylene (PP) Filter Cloth ,
• Chinlon (polyamide/nylon) Filter Cloth
• Vinylon PV Filter Cloth .
• Needle felt
• Cotton.

Filter Cloth Application :
Mining Industry :Coal Washing , Tailing of Gold / Zinc / Nickle , Tialing of coal, Kaolin clay, Cement , Aggregate , Asphalt , etc.

Environmental protection: Sewage treatment, Sludge dewatering , flue gas desulphurization, Salt mud , fly ash, etc.


Chemical Industry :Pigment , Zinc oxide, Activated carbon, , Iron oxide , Nickle, Titanium Oxide, White Carbon Black , Calcium Carbonate , etc.

Steel & Iron ,Metallurgical Industry :Alumina / Aluminum oxide , Iron Ore , Gold, Leads , Vanadium , Nickel , Zinc , Copper, Titanium, etc.

Food processing :Fruit juice, Sugar, Syrup,Beer Eatable Oil , etc.

• P0802Y Coal Washing
• T0803t Waste Water treatment
• P050D, P030MD, P020MD Mud / Slurry Dewatering
• N9029 Alumina / Aluminim Oxide
• N199 Iron ore concentrate
• P1010 Aggregate / Mining
• P020MD Leads ore concentrate
• 9501-35 Cement Plant
• 9501-34 Zinc oxide
• PT9502b-41DY Municiple Water / Waste water treatment
• PT9502b-31 Gold
• P750AB Copper
• 9502-402DY Slurry Dewatering
• P190 Beer filtration
• P199s/P11636: Sugar Plant filtration
• N120B Palm oil filtration,
• 3233SY White carbon black
• 3233SY/108C/P801IIy Kaolin Clay
• T3112BY/3233SYY Pigment, dyestuff

• High dimensional stability,
• Good abrasion performance,
• Wide range of filter rate
• Efficient fabric cleaning
• Smooth Surface
• Easy Cake Releasing .
