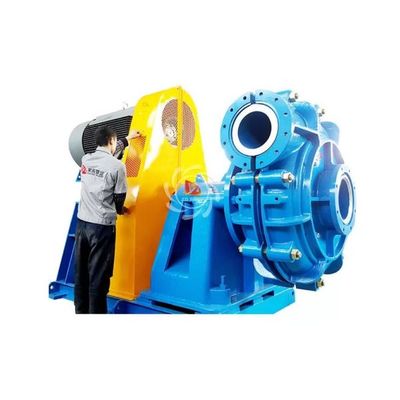

Zidong Pump - Model ZH-12X10G -Mine Tailings Metal Liner Slurry Pump With V Velt Driving

• The ZH metal liner slurry pump is a single-stage, single-suction and horizontal heavy duty centrifugal slurry pump with a cantilever design.
• Parts in contacting with the medium are made of latest wear-resistance 27% chrome alloy white iron with hardness 62HRC over, which has an excellent feature for maximum resistance to strong abrasive, coarse particle.
• Designed for continuous conveying highly abrasive and high-hardness, high-concentration, low-corrosion slurries contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones in the tailing mining,minerals recycling ,coal washing, industries of metallurgy, pulp and paper manufacture , power plant, building material,&chemical engineering, sand dredging ect.

A centrifugal slurry pump is mainly composed of 3 parts:

1. The wetted parts (such as impeller, volute ,throatbush,FPL insert)
2. Shaft seal parts(such as gland packing seal, expeller seal or dynamic seal,etc.)
3. Bearing assembly parts,etc.

Bearing assembly: - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.Only four through bolts are required to hold the cartridge type housing in the frame.

Drive types: Such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

• Cantilevered horizontal centrifugal slurry pump
• Double casing slurry pump
• Wear resistant metal wet end parts for coarse solids slurry with long service life and high efficiency
• Wide options of impellers of standard 5vanes,4vanes high efficiency and 2vanes nonclogging.
• Available with gland seal, centrifugal seal or mechanical seal
• Grease or oil lubrication
• Eight positions of discharge branch at intervals of 45 degree
• Can be installed in multistage series
• Low cost of ownership

The pump has variety of combinations of lining and impeller to adapt to different medium characteristic.
