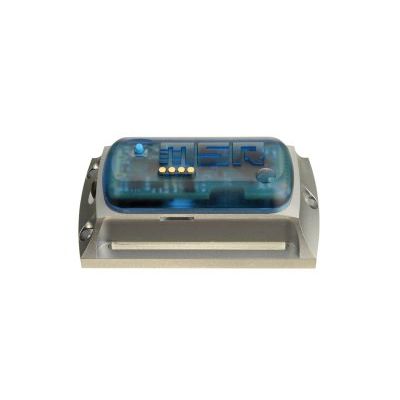

MSR - Model 160 -Mini Data Logger with 4 Analogue Inputs and Microsd Card
Four integrated analogue inputs, a high measurement rate of up to 1000/s per channel and its gigantic memory capacity, all packed into a small format are the key characteristics of the MSR160 data logger. The analogue inputs of the robust mini logger can be used for conventional sensors with analogue outputs (e.g. CO2, conductivity, pH etc). In addition, a multiple output switching power supply is also provided.
Most popular related searches
The basic specification of the MSR160 includes four analogue inputs. In addition you can also record temperature, humidity, pressure and attitude. If required, you can also connect external sensors in place of the internal ones (temperature, humidity or pressure), maximum two pieces.
- Analogue inputs:
- 4 analogue inputs with freely selectable input configuration:
- 0...20 mA; 4...20 mA; 0...3.0 V; 0.5...4.5 V; 0...5.0 V; 1.0...6.0 V;
- 0...10.0 V; 0...12.0 V; 0...24.0 V; Resolution: 12 Bit
- Measurement / storage rate: 1000/s per channel to every 12h
- Housing: Anodised aluminium case, PC
- Size & weight: 39 x 23 x 72 mm, approx. 80 g
- Colour: Blue, anthracite
- Medium: Air, various liquids
- Key: Configurable pushbutton functions
- Memory capacity: Over 2 Mio. measurement parameters, expandable to over 1 bn
- with optional microSD card.
- Power supply: Rechargeable lithium polymer battery 900 mAh
- Interface: USB
- PC software: Setup, Reader, Viewer and Online software (Windows XP/Vista/7/8/10)
