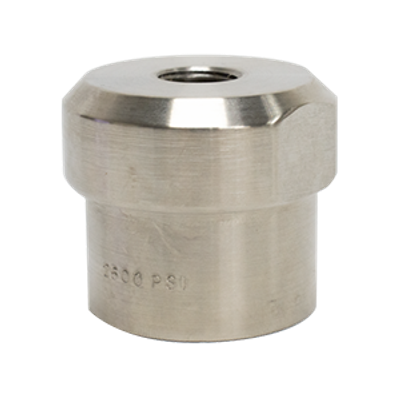

Marsh Instruments - Model 13000 Series -Mini Diaphragm Seals
The Model 13000 Mini Welded Seal is designed for up to 3 1/2” bourdon tube gauges with aminimum range of 0-60 psi. The maximum operating pressure is 2,500 psi at 100˚F. Available inall 316 Stainless Steel or Hastelloy C process housing and diaphragm.
Most popular related searches
- Fully Welded Construction
- Compact, Economical Design
- Viscous Media
- Clogging
- Corrosive Media
- High Temperature
- DIAPHRAGM MATERIAL : 316SS, Hastelloy C276, Custom (contact factory)
- OPTIONS : Low Pressure, High Pressure
- DESIGN : Meets/Exceeds ASME B40.100
- FLUSH CONNECTION : None, 1/4" NPT
- PRESSURE RATING : 60-2500 psi, low pressure VAC-30 psi (contact factory), high pressure above 2500 psi (contact factory)
- SERIES : 13000 Series
- INSTRUMENT CONNECTION : 1/4", 1/2" Female NPT, Custom (contact factory)
- SYSTEM FILL : Glycerine, Silicone, Syltherm, Halocarbon (Inert), Custom/Other (contact factory)
- PROCESS CONNECTION : 1/4", 1/2", 3/4" Female NPT, Custom(contact factory)
- LOWER HOUSING MATERIAL : 316SS, Hastelloy C276, Custom (contact factory)
- UPPER HOUSING MATERIAL : 316SS, Hastelloy C276, Custom (contact factory)
- BOLTS NUTS : Fully Welded
