AES - Mini Drain Small Pumping Station
Our Mini Drain pumping station can be used for the transfer of clean and dirty water from basements, extensions, garden rooms and out buildings to the main drain.

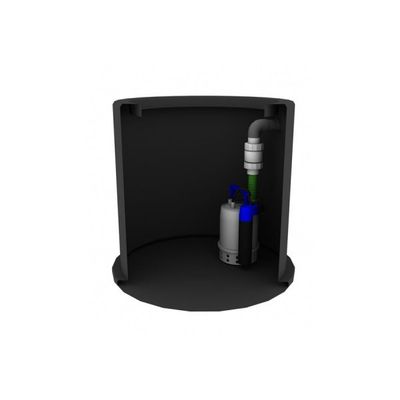

The Mini Drain consists of a premium quality 600mm diameter polyethylene tank with pedestrian rated manhole cover and a submersible drainage pump with a maximum flow rate of 180 litres and 9m lift.
Available in four sizes, 175 litres, 280 litres, 420 litres and 580 litres, the depth of the tank needed will be dependent on the invert level and storage required.
A Mini Drain pumping station is supplied with a submersible drainage pump with float switch to provide automatic operation, all of the submersible pumps we supply with our pumping stations are selected for their performance and reliability.
All 1¼ inch internal pipework is supplied to connect the pump to the discharge, we also supply, as standard, a 110mm rubber grommet for the inlet pipe.
Mini Drains are supplied in kit form for ease of installation, options include a high level alarm and 40mm MDPE discharge pipe in 50m and 100m lengths.
The Mini Drain is not designed to handle waste from toilets, if you need a small pumping station to handle sewage please see our Mini Foul sewage pumping station.
- 600mm width polyethylene tank with pedestrian rated manhole cover
- Choice of tank depth, 635mm (175L), 1000mm (280L), 1500mm (420L) and 2000mm (560L)
- Internal 1¼ inch pipework including non-return valve (supplied in kit form, assembly required)
- Anti-flotation flange prevents tank being lifted by ground water level – tank must be concreted in as per operation guide
- Submersible drainage pump (230v) with 180 litre per minute flow rate and 9m lift (please note the pump can be upgraded to suit requirements, ask for details)
- Automatic operation – optional high level alarm available
- Supplied with one 110mm seal for inlet hole to be cut on site
