Geotomographie - Model M40 -Mini-Geophone Used to Receive P- and S-Waves In Horizontal Boreholes

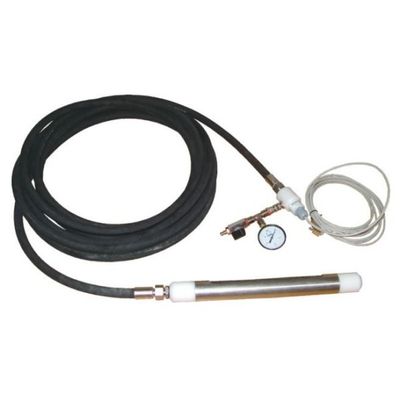

The Mini-Geophone M40 is used to receive P- and S-waves in horizontal boreholes. The borehole geophone consists of a tri-axial sensor. The geophone is coupled to the borehole wall by a pneumatic clamping system (inflatable bladder). Air is supplied to the M40 through the cable. The orientation of the M40 geophone is controlled from surface by a torsionally stiff hose. The cable is terminated by a connector to the seismograph.
