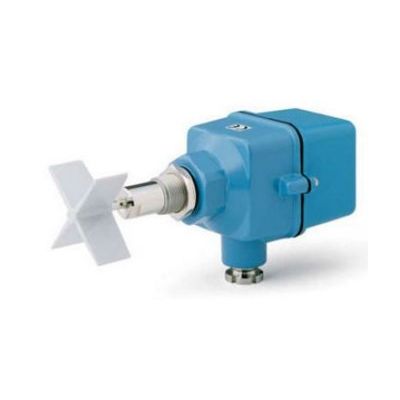

APG - Model Series PWS -Mini Level Paddle Wheel Switch

Compact Paddle Wheel For Tight Spaces
Designed for small bins and hoppers, the PWS has a rugged build for tight spaces.

• Application: Solids
• Type: Paddle Wheel

• Miniature size
• Simple torque adjustment
• Reliable design
• Low cost

Compact Size
The PWS rotating padding wheel level switch is appropriate for small bins and hoppers with a compact size that fits in tight corners.

Easily Adjusted
This paddle wheel level sensor offers four different torque settings for just the right sensitivity.

Low Cost
The PWS feature a low price tag and a reliable design. Even repairs are inexpensive and easy when the occasional need arises.

Performance

• Operation
• 1 SPDT switch

Programming

• Adjustable Torque Setting
• PWS-X: 390 to 630 g/cm
• PWS-Z: 270 to 500 g/cm

Electrical

• Output Contact Rating
• 240 V 3 A AC; 30 V 3 A DC (resistive)

Physical

• Housing
• ADC12 and Polycarbonate or ABS (see datasheet)
• Mounting Section
• Galvanized Brass
• Rotation Spindle
• 304 SS
• Paddle
• Polycarbonate or 304 SS

Approvals

• N/A

Connectivity

• Electrical Connection
• PWS-X: 5 conductor cable, 300 mm
• PWS-Z: G 1/2

Environmental

• Operating Temperature
• PWS-X, Z, XL, ZL: 14 to 128°F (10 to 50°C)
• PWS-XT: 14 to 248°F (-10 to 120°C)
• Enclosure Protection
• PWS-X: IP40
• PWS-Z: IP65
