MINI-PACTORRoller Compactor for Laboratory Development

SHARE

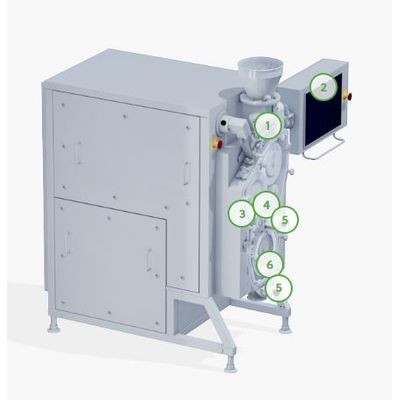

The MINI-PACTOR® is the ideal roller compactor for laboratory development. It can process materials as few as 10g. At the same time the machine can easily handle pilot projects and small scale production batches. Scale-up to our full scale production machines is the fastest on the market due to our harmonized PACTOR®-designs.

Most popular related searches
  • Press roller surface: smooth, knurled or custom design
  • Granulator: star rotor or pocket type with pre-crushing feature
  • Custom built interface to connect with pneumatic or mechanical conveyor systems
  • Wash-in-Place and Clean-in-Place solutions
  • Seamless integration with MES-software
  • Throughput : max. 100 kg/h
  • Press Force : 1 - 20 kN/cm
  • Roller Speed : 1 - 30 rpm
  • Gap : 1 - 6 mm
  • Weight : 1200 kg
