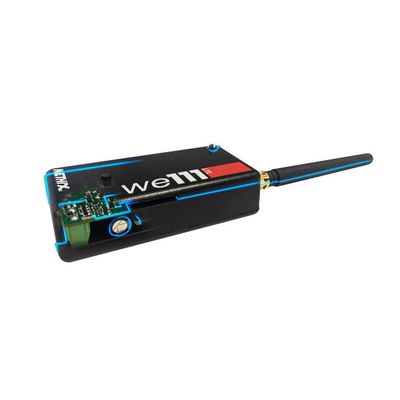

Nethix - Model WE11X -Mini Programmable Controllers
The mini programmable controllers of the Nethix series WE11X present four different models for remote control and monitoring applications. Versatility is their strenght. Thanks to the compact dimensions and the configurability of the input on board, these devices offer the right solution for several IoT applications: from the management and control of domestic heating, lighting or watering systems; to the controlling of small automated plants and machines in the agricultural, meteorological or water sector, and many others.
The VPN (Standard Open VPN) is also supported and allows to access remotely any device, independently from the used connection.
The WE11X products acquire data from the field through a configurable input and make them available on Cloud or Server. Thanks to their programmable logics, they also allow to manage alarms and/or automated actions.
- Smart systems
- Lighting
- Water networks monitoring
- Access control
- Smart Agriculture
- Weather Monitoring
- Vending machines
- Power supply ; Through USB-C cable 5VDC
- Connectivity ;
- Integrated LTE modem : LTE (2600-2100-1800-900-850-800 MHz) / GSM (900-1800 MHz)
- Integrated Wi-Fi module : Wi-Fi: 2.4 GHz (b/g/n)
- Integrated NB-IoT module : LTE (2100-1900-1800-1700-900-850-800-700 MHz)
- Integrated LoRa® module : LoRa: 868-915 MHz
- Input ;
- 1 PROGRAMMABLE INPUT
- ANALOGIC
- 0-5Vdc / 0-20mA / 4-20 mA / NTC
- DIGITAL in dry contact
- Mode: Counter | On/Off | Hour meter | Flow meter
- Data delivery ; Nethix Cloud | Email report | Chat | HTTP/HTTPS | MQTT/MQTTS
- Output ;
- 1 RELAY OUTPUT
- 2A@30VDC / 0.5A@230VAC
- LED ; LED RGB
- Consumption ; average 500mA, peak 2A
- Dimensions (L x W x H) ; 40 x 23 x 85mm
- Weight ; 55 g
- Working temperature ; -15°C - +55°C
- Storage temperature ; -25°C - +85°C
- Humidity ; 0% - 80% (non condensing)
