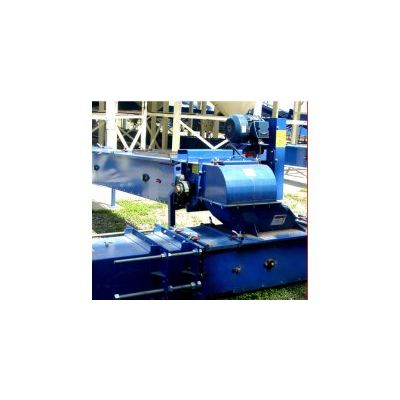

Mini Roller - Model 16-36 -Enclosed Belt Conveyor

The Mini Roller® provides lower profile, lower capacity conveying. The unique spool shaped idler used in the Mini Roller® provides a troughed support for the conveyor belt. The spool shaped idler uses two external bearings as opposed to six internal bearings on more conventional idlers.

The Mini Roller® idler is constructed with a heavy wall pipe that passes through the center of the idler, providing rigid support. The center pipe is then reamed to the correct tolerance to accept the turned and polished stub shaft that passes through the external bearings.

Removable Dust Covers
152 cm (5`) long removable weather and dust covers

Quick Release Fasteners
Sturdy quick release fasteners for cover removal

Externally mounted bearings
Externally mounted bearings with flinger seals,...

Heavy angle iron end flanges
Heavy angle iron end flanges

Removable trunking bottoms
Removable trunking bottoms allow quicker liner replacement

No internal brackets or ledges
No internal brackets or ledges for material to build up

Continuous heavy wall pipe
Continuous heavy wall pipe through the center of the...

Easily Removable Stub Shafts
Stub shafts support the carrying idlers and are easily...

Spool Shaped Carrying Idlers
Mini Roller utilizes spool shaped carrying idlers that...
