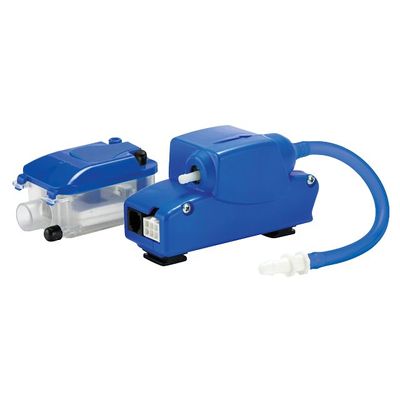

Little Giant - Model EC-1-DV Series -Mini-Split Condensate Pumps
Condensate needs to be drained from your HVAC equipment to maintain proper function. The EC-1-DV Series of mini-split condensate pump is an automatic condensate removal system designed to remove the water from a ductless mini-split air conditioner evaporative coil when gravity-feed drainage is not possible or practical. Series models include improved noise reduction, reliable solid-state switching technology, and easy to install mounting brackets to create a pump that benefits contractors, installers, and end-users.
Most popular related searches
condensate pump
condensate pumping
drain hose
condensate draining
HVAC equipment
drain fitting
drain pump
air conditioner
noise control
gravity drainage
- Dual Voltage 110 - 240 V 50/60 Hz
- 2.5 gph @ 1 ft (9.5 lph) flow
- 33 ft (10 m) shut-off (max. recommended)
- Hall effect switching
- Large inlet filter
- Multi-size hose drain adapter fits all popular drain hose connectors
- Dual Voltage 110 - 240 V 50/60 Hz
- 2.5 gph @ 1 ft (9.5 lph) flow
- 33 ft (10 m) shut-off (max. recommended)
- Hall effect switching
- Large inlet filter
- Multi-size hose drain adapter fits all popular drain hose connectors
| Capacity | 2.5 gph @ 1` |
| Shut Off | 33` (10 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1/4" (6 mm) I.D. Pump Discharge Outlet |
| Electrical | 100-240 V, 50/60 Hz, 0.18 A |
| Operation | Automatic |
