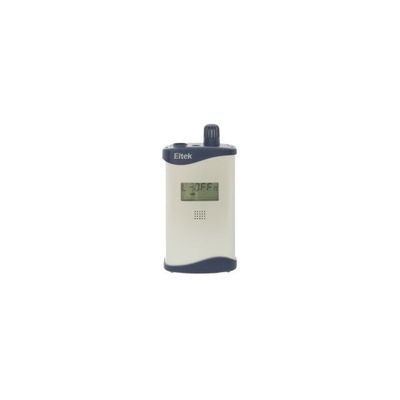

GenII - Model MS47AC and MS47B -Mini Squirrel Datalogger

• Mini Squirrel is ideal for monitoring smaller spaces such as galleries or laboratories. A feature of the Mini Squirrel is ease of deployment and data download. A top panel mounting jack socket is provided for data download.
• The scrolling LCD display provides real time sensor values and screen prompts inform the user that the logger is set up and ready to go as required.

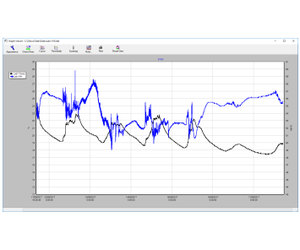

• Eltek`s Darca Lite Windows software is designed for use with the MS Mini Squirrel, enabling the user to configure, download data, and graph historic data quickly and easily.
• A communications lead, type LC99, is required in order to connect the datalogger to a PC. This must be ordered separately.

Operating environment

• Temperature: -5 to +55°C, RH: 0-95% non condensing
• Environmental rating: IP50 (Secondary enclosure available for outdoor use, rated IP60)

Data storage

• Logging interval: 1 second to 24 hours
• Memory capacity is expressed in "readings"
• One channel enabled is 87,000 readings
• Two channels enabled is 104,000 readings
• Three channels enabled is 112,000 readings
• Four channels enabled is 118,000 readings

Channel allocations can be renamed using Eltek software. For example, Channel 1 can be configured to appear as "Main Gallery"

Number of recording runs: 1
