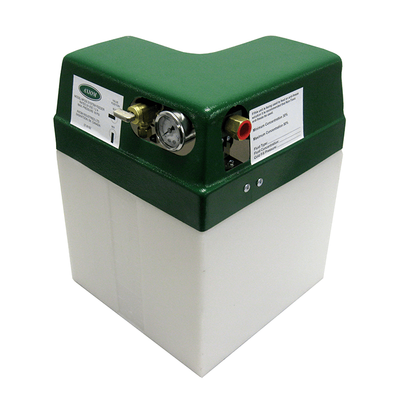

AXIOM Pressure Pal - Model MF200 -Mini System Feeder
The 'PRESSURE PAL' is an exceptional mini system feeder perfectly suited for closed hydronic systems requiring specific pressurization without the need for cold static fill pressures exceeding 170 kPa (25 psig). This feeder is versatile, efficiently working with both water and glycol/water solutions. It is particularly advantageous for small boiler and chiller systems as well as snow and ice melt circuits. Additionally, it is ideal for outside air heating and cooling glycol coils, and also compatible with solar heating systems. Its robust design and compatibility make it an excellent choice for enhancing the efficiency and reliability of smaller-scale hydronic systems.
The ‘PRESSURE PAL’ is ideal for feeding and pressurizing closed hydronic systems that do not require cold static fill pressures higher than 170 kPa (25 psig). It is compatible with both water and glycol/water solutions. Perfect for small boiler/chiller systems, snow/ice melt circuits, outside air heating/cooling glycol coils, solar heating systems.
- 25 liter (6.6 US gallon) tank for storage and mixing
- UL listed Power supply plugs into any standard 115 VAC outlet
- Diaphragm pump can run dry without damage
- No direct connection to potable water supply eliminates need for backflow prevention
- Make-up fluid stored in the feeder tank can be pre-treated
- Diverter valve allows easy purging of air on initial start-up, and manual agitation of solution
- Prevents major floods – in the event of system rupture, only the contents of the tank will be pumped into the system
- Provides leak detection – dropping fluid level provides immediate notice that the system has developed a leak
- Fluid drained for service can easily be put back into the system
- Fluid level switch shuts the pump off if the storage tank level gets too low
