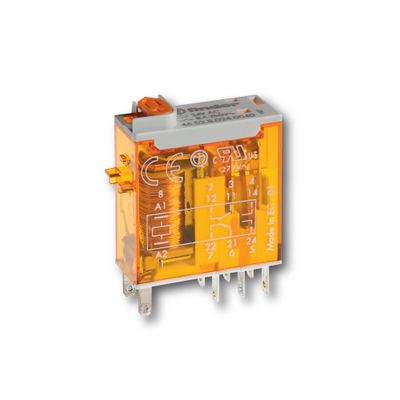

Finder - Model 465280120020 -Miniature Industrial Relay 8A
The Type 46.52 miniature industrial relay is an industrial power relay for socket mount or direct connection via Faston connectors. 2 changeover 8 A and plug-in/solder terminals.
Features include:
- AC or DC coil
- Available with: lockable test button, mechanical indicator and LED
- 8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts
- Cadmium-free contacts
- For use with 97 Series sockets for printed circuit board, solder or for 35 mm rail (EN 60715) mountingwith push-in, spring or screwless terminals
- For use with 99 Series Coil Indication and EMC suppression modules and Type 86.30 timer modules
- Adaptors for alternative mount arrangements
- European patent
Ambient temperature range
-40...70 °C
Commercial description
Miniature industrial relay is an industrial power relay for socket mount or direct connection via Faston connectors. 2 changeover 8 A and plug-in/solder terminals.
Contact configuration
2 pole, CO (nPDT)
Dimension
12.4x32.8x29 mm
Electrical life
100000 cycles
Insulation coil/contacts
6 kV
Nominal voltage ac
12 V
Nominal voltage dc
-
Operating range ac
9.6...13.2 V
Operating range dc
-
Rated current contact
8 A
Rated power ac
1.2 VA
Rated power dc
-
Rated voltage contact
250 V AC
Supply version
AC coil
Technical description
Miniature Industrial relay, Spade/blade solder terminal, 2 pole, CO (nPDT), 8 A, AgNi, AC coil, 12 V, operating from 9.6 to 13.2 V, rated power 1.2 VA, resistance 80 Ω, consumption 90 mA, holding voltage 9.6 V, must drop-out voltage 2.4 V, option: Mechanical indicator, ambient temperature from -40 to +70 °C
Type
Spade/blade solder terminal
