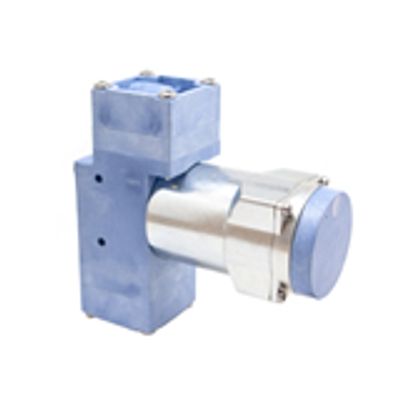

Parker - Model LTC Series -Miniature Liquid Diaphragm Pump

Parker`s LTC-IIS Miniature Diaphragm Pumps are offered in both brush and brushless DC motor drives that can be configured for your specific performance requirements and handle a wide range of liquid media over a wide range of pressures. LTC-IIS patented Fluid-Blok™ Advanced Sealing Technology provides redundant sealing capabilities to eliminate potential leaks.  Monolithic diaphragm design enables maximum suction, priming, and continuous dry operation

• Parker`s LTC IIS single body and dual head liquid pumps are ideal for customers looking for high liquid pump performance vs. size ratio to meet the needs of clinical chemistry, in-vitro diagnostics, or industrial printing applications.
• LTC IIS Pump provides up to 1.5 LPM, 2000 mbar, and 500 mm Hg in140 to 200 g packages
• Our miniature diaphragm liquid pump technology is highly configurable with various options for cost effective or long-life requirements,
• Designed to be chemical resistant, liquid tight, self-prime, and dry running capable designs for critical applications.

Typical Applications:

• Large Format Printing
• Urinalysis
• Photo Processing Printing
• Clinical Diagnostics
• Liquid Chromatography

• Typical Applications : Clinical Diagnostics, Liquid Chromatography, Urinalysis, Wide Format Printing
• Maximum Free Flow : 1.5 lpm
• Maximum Continuous Pressure : 30 psig (2,068 mbar)
• Maximum Intermittent Pressure : 30 psig (2,068 mbar)
• Maximum Vacuum Continuous : 20 in Hg (508 mm Hg)
• Maximum Vacuum Intermittent : 20 in Hg (508 mm Hg)
• Current Range (mA) : 390 mA - 1.1 A
• Motor voltage options : 6, 12, 24 VDC
• Noise : As low as 45 db
• Motor Options : Brushed (1,500 Hrs) or Brushless (10,000 Hrs)
• Motor Control Options : 2 Wire (Analog or PWM) Brushed, 2 Wire, 3 Wire (Analog or PWM)
• Motor Life : Up to 10,000 hours
• Materials : Head : Vectra, Teflon
• Materials : Diaphragm : EPDM, AEPDM, Perfluoro, Fluorocarbon
• Materials : Valve : EPDM, AEPDM, Perfluoro, Fluorocarbon
• Dimensions: Width : 30 mm
• Weight (lbs) : 7 oz(198 g) Brushe
