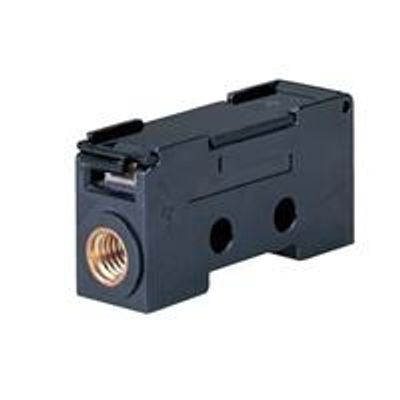

iCenta - Model MCS100 -Miniature Mass Flow Sensor
The MCS100 is a compact, fast response air mass flow sensor equipped with a µF (Micro Flow) sensor chip. The MCS100 outputs mass flow signal according to the standard condition (20°C, 1 atm) of the gas flow without temperature or pressure compensation. The MCS100 offers a various flow range, in addition to its wide range ability. The MCS100 is suited for a variety of flow measurements in such as physics and industry applications.
Most popular related searches
mass flow sensor
mass flow
flow sensor
thermal mass flow meter
mass flow metering
mass flow meter
thermal mass flow
flow meter
flow monitoring
sensor system
Features of the MCS100 Miniature Mass Flow Sensor include:
- Compact and lightweight: 33.5*10.5*17.0 mm, just 9 g (without cable)
- Fast response time: 5 ms max.
- High accuracy and high repeatability: Accuracy: +/-5%FS, Repeatability: +/-2.0%FS (depending on the model number)
- Positive/negative flow measurement due to its symmetrical structure
- Low power consumption: 12 mA max. at 24 Vdc
- Free mounting position and not required straight piping length
- Compact and lightweight
- Low power consumption
- High level of accuracy
- Air volume samplers
- Gas analysers
- Pick and place detection for minute electronic/optical devices
