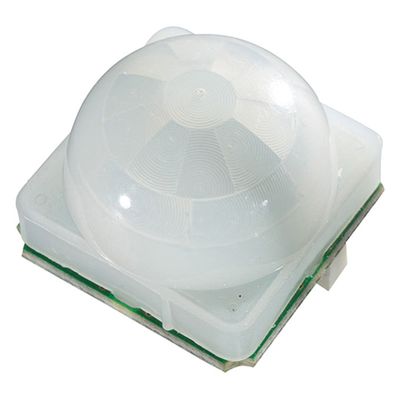

Miniature Motion Detector

The motion detector module is suitable for many applications where motion or presence is registered and so switching operations are caused. The sensor reacts to the heat radiation of moving objects. The compact SMD module has some characteristic features which guarantee universal applicability despite its small size.Very high sensitivity, adjustable in 4 steps. Integrated window comparator, TTL- and CMOS-compatible open collector output with pullup, which can also control LEDs and relays directly. Additional analogue output for your own evaluation circuit.
