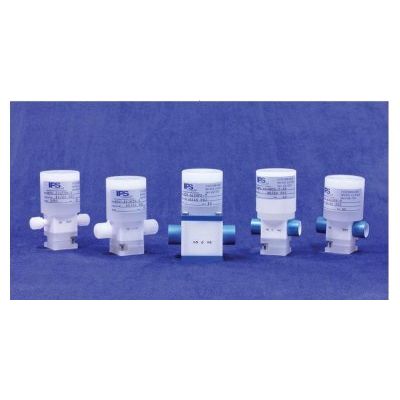

IPS - Miniature Pneumatic Diaphragm Valves - Standard
Our IPS Miniature Pneumatic Diaphragm Valves offer precision performance under extreme conditions. Offered as 2-Way and 3-Way Valves with six internal body configurations and three valve seat sealing methods, our IPS Miniature Pneumatic Diaphragm Valves are suitable for a wide range of ultra clean to highly corrosive media applications. Our all virgin PTFE wetted surface design is ideally suited for semiconductor, pharmaceutical, bio-medical and chemical process applications. Configurable with a PTFE Hard Seat, FKM-Viton O-Ring Seat or FFKM-Kalrez O-Ring Seat the IPS MTV series valve line provides unsurpassed chemical compatibility with a wide range of flow media. The all wetted PTFE body, valve stem and one piece diaphragm maintain a material inert boundary for ultra clean applications.
- PTFE design optimized for ultra clean and chemical compatibility.
- Lightweight pneumatic actuator with compact valve design.
- Pneumatic Actuator available in standard Polypro or Hi Temp Configuration.
- The PTFE diaphragm completely isolates the media from the actuator.
- 100% pneumatic driven – does not require power only supply air.
- 100% pneumatic driven – does not require power only supply air.
- O-ring seat configurations for vacuum and complex media applications.
- Designed for aggressive media and elevated temperature.
Other Options Available on Request:
- Valves with special port connections such as combinations of pipe, tube and flared ends
- Valves without mounting studs or valves with 4 mounting studs (2 are standard).
- Manifolded valve assemblies.
