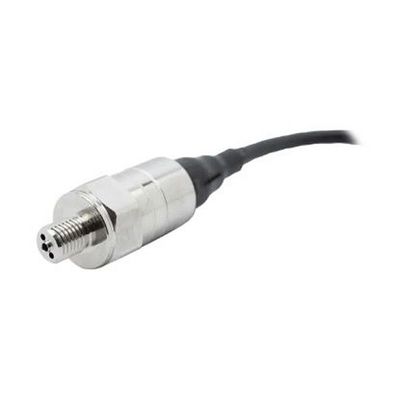

EFE - Model PCM160 -Miniature Pressure & Temperature Sensor

The PCM160 series sensors allow simultaneous measurement of pressure and temperature at a single point. Their all-metal, stainless steel construction makes them compatible with most of fluids used in industry. Their size, weight and robustness allow them to be integrated in all applications, especially embedded on vehicles, aircraft, missiles, satellites... Equipped with EFE thin film technology associated with a platinum probe, operating independently of each other, the PCM160 sensors deliver an amplified or unamplified signal for pressure, while the temperature measurement comes directly from the PT1000 or PT100 probe. Available with ranges covering -1 to 500bar, they are compatible with extreme temperatures from -55 to +175°C. The PCM160 series is available in 3 models: the PCM161 has a non-amplified signal for pressure (mV/V), the PCM163 is ratiometric (5Vdc power supply, 0.5-4.5Vdc pressure signal) and the PCM167 delivers a 0.5-4.5Vdc voltage for pressure measurement with an unregulated power supply of 8 to 16Vdc.

• Product category :
• Harsh Environment Sensors
• Specialty Sensors
• Miniature Sensors
• Power supply : 5 to15Vdc stabilized and filtered
• Offset : ±3%FS
• Sensitivity : 2 to 5mV/V
• Pressure ranges (FS) : -1/+2bar3bar-1/+4bar5bar10bar20bar40bar100bar250bar400bar500bar-14.5 /+30 PSI40PSI-14.5/+60 PSI70PSI150PSI300PSI500PSI1500PSI3000PSI5000PSI7000PSI
• Operational mode :
• Gage
• Absolute
• Type (for ranges > 40 bar) : Sealed Gage
• Mechanical connection :
• M10x1-4h male with thermal probe
• 3/8-24 UNF-3A male with thermal probe
• M8x1-6g male with thermal probe, sealing by O-ring 6.2 x1.5
• Electrical connection :
• Teflon shielded cable AWG Ø3.4±0.2mm, 5 wires, and Viton sleeve
• AWG26 shielded Teflon cable Ø3.4mm ±0.2, 5 wires
• Hermetic MIL-C-26482 - 6 pins Receptacle
• Compensated temperature range :
• 0 to +60°C
• -40 to +175°C
• 0 to +175°C
• -40 to +125°C
• Combined thermal zero & sensitivity shifts :±0.02% FS/°C
• Size : Miniature
• Diameter :16.6mm
• Material(s) of wetted parts :
• Stainless steel 15-5PH
• Stainless Steel 17-4PH
• Stainless Steel 316L
• Signal bandwidth : DC to 1000Hz @ -3dB
• Non linearity and hysteresis combined : ±0.25% FS typical (±0.35% FS max.)
