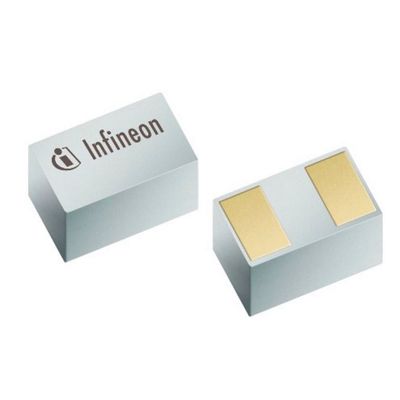

InfineonModel ESD202-B1-CSP01005 -Miniaturized Low Capacitance Bi-Directional ESD / Transient Protection Diode

SHARE

Potential Applications: Keypad, touchpad, buttons, convenience keys. LCD displays, Camera, audio lines, mobile communication, Consumer products (E-Book, MP3, DVD, DSC...). Notebooks tablets and desktop computers and their peripherals. Modules (WiFi,fingerprint, Flash…).

Most popular related searches
  • ESD / transient protection according to:
  • – IEC61000-4-2 (ESD): ±15 kV (air/contact discharge)
  • – IEC61000-4-5 (Surge): 3A (8/20 µs)
  • Bi-directional, working voltage up to VRWM = ±5.5 V max.
  • Low capacitance: CL = 6.5 pF (typical)
  • Ultra low dynamic resistance: R DYN = 0.20 Ω typ.
  • Low reverse current. IR = 100nA (max.)
  • Pb-free (RoHS compliant) and halogen free package
