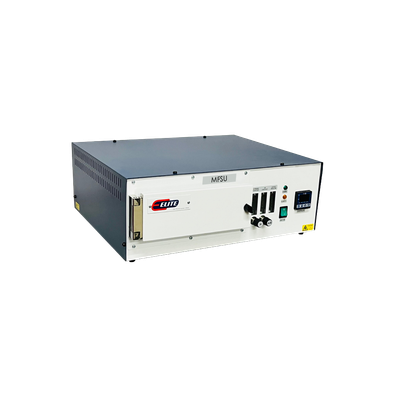

Sylab - Model ASTM & ISO/MFSU -Minimum Free Space Oven
Minimum Free Space oven is utilized for drying process which features a compact heated chamber that provides the lowest practical volume, or minimum free space. The MFSO-ISO operates with a regulated flow of moisture free nitrogen gas which removes the moisture released by the coal at 105 °C as per BS 1016-104.2:1991, BS ISO 687:2010 & BS ISO 11722:2013. The MFSO-ASTM operates with a regulated flow of air as per ASTM D3173-11. MFSU is a Universal Minimum free space oven as per above ASTM, ISO & BS test methods.
Most popular related searches
flow meter
seal integrity
flow monitoring
gas flow monitoring
gas monitoring
flow regulation
flow regulator
ASTM testing method
crucible
ASTM testing

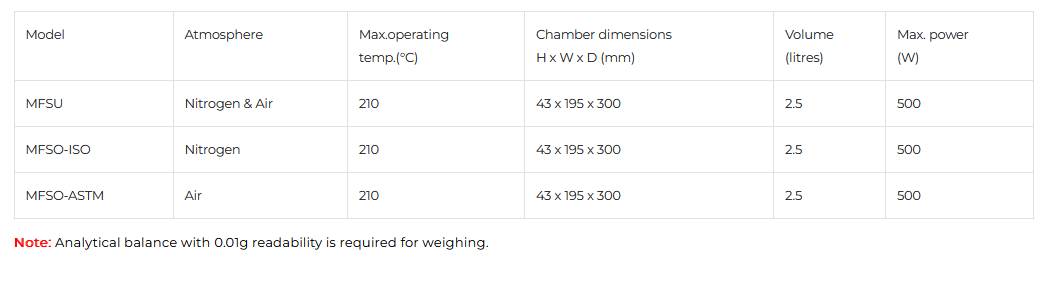

- Maximum Temperature: up to 210 °C.
- Maximum Continuous Temperature: up to 210 °C.
- Chamber dimensions (mm): 43 x 195 x 300 (H x W x D), 2.5Litres.
- The ovens have an aluminum chamber that resists oxidation and corrosion, resulting in excellent temperature uniformity over the working volume.
- Before accessing the front of the work chamber, the nitrogen or air flow passes through a preheating chamber and is adjustable via a flow meter mounted on the control panel.
- 2 Flow meters to monitor gas flow of Nitrogen & Chamber seal integrity in MFSO-ISO.
- 2 Flow meters to monitor gas flow of Air & Chamber seal integrity in MFSO-ASTM.
- 3 Flow meters to monitor gas flow of Nitrogen, Air & Chamber seal integrity in MFSU.
- Aluminum loading tray is supplied as standard accessory.
- Over temperature protection.
- Multi segment, multi program storage Controllers.
- Silica (or) Alumina crucibles with well-fitted lids.
- Vacuum desiccator with gas inlet & gas outlet.
