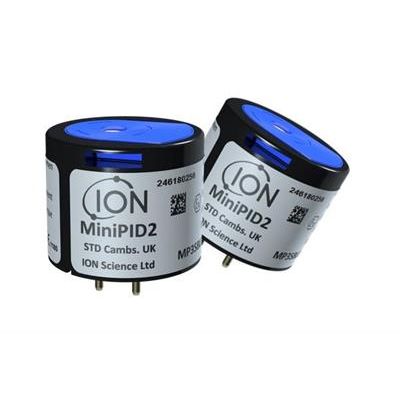

MiniPID 2 PID PPM - Photoionisation Detection (PID) Sensors
Our PPM sensor is designed for detecting VOCs over the widest dynamic range on the market without compromising performance. It is also the only PID sensor with a lamp out diagnostic. Designed for OEMs, we manufacture and supply more photoionisation detection (PID) sensors than any other company in the world with our sensor technology trusted by major gas detection manufacturers, globally. Our patented Fence Electrode Technology is proven to resist humidity and contamination, giving you outstanding results when detecting volatile organic compounds (VOCs) within the most challenging environments. >4000 ppm range, 0.1 ppm MDL, 10.6 eV.
MiniPID 2 is a simple plug-and-play sensor able to deliver a dynamic and dependable response to thousands of volatile organic compounds (VOCs) across many diverse applications.
The sensor is designed for both diffusive and in-line pumped sampling, delivering an exceptional response time and clear down. MiniPID 2 incorporates lamps of exceptional brightness and stability enabling detection of less volatile and less readily sensed compounds reliably, over an extended period of time.
Our PPM sensor is designed for detecting VOCs over the widest dynamic range on the market without compromising performance. It is also the only PID sensor with a lamp out diagnostic.
- Humidity-resistance
- 10,000 hours continuous lamp life
- Anti-contamination design
- 10.6 eV lamp
- Removable, pneumatically sealed sensing electrode stack
- Series 4 / A1 size
- 12- month warranty (excluding the electrode stack)
- Expected life > 5 years
- Manufactured in the UK
Performance
- Electrode Stack Colour: Blue
- Minimum Detection Limit: 100 ppb
- Range: 0->4000 ppm
- T90 Response Time (Seconds): <3
- Sensitivity: >0.65 mV/ppm @ 100 ppm
Power and Signal
- Supply Voltage (using internal regulator): 3.6 – 18 V (non intrinsically safe 10 – 18 V)
- Supply Voltage (using a regulated power supply): 3 – 3.6 V
- Current: 20 – 32 mA (130 mA for 100 ms at start up)
- Power Consumption: 100 mW at 3.3 V
- Output Signal (using internal regulator): 0 – 3.2 V
- Output Signal (using a regulated power supply): 0 to rail voltage – 0.1 V
Environmental
- Temperature Range: -40 to 65 °C
- Relative Humidity Range: 0 – 99% RH, non condensing
Lifetime and Warranty
- Expected Life: >5 years
- Lamp Life: 10.6 eV 10,000 Hours
- Warranty : 10.6 eV lamp and MiniPID Body –12 months 11.7 eV lamp – 3 months
Patents and Certification
- Patents: US 7,046,012 EC 1474681
- Certification:
- Europe: ATEX Ex II 1G Ex ia IIC Ga (-40 °C ≤ Ta ≤ +55 °C) @ 1.1W, (-40 °C ≤ Ta ≤ +65 °C) @ 0.9W
- Worldwide: IECEx Ex II 1G Ex ia IIC Ga (-40 °C ≤ Ta ≤ +55 °C) @ 1.1W, (-40 °C ≤ Ta ≤ +65 °C) @ 0.9W
- North America: UL913 (8th) EditionClass I, II, III, Division 1 CSA-C22.2 No157-92
