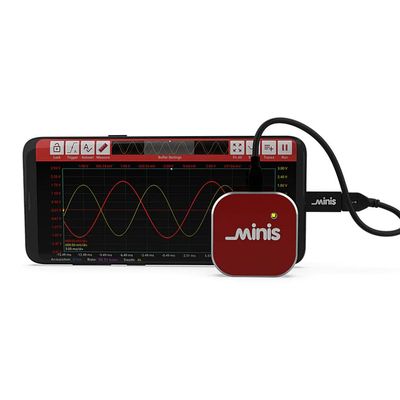

Minis - Portable USB Digital Oscilloscope
Minis gives precision with its high technology hardware, top quality material and simple design. It puts user experience over anything else to give you a better measurement experience. While working on measurements, with its pocket size Minis will always be there to help you. Just download the Minis application to your preferred device and connect it to Minis with the Usb cable provided with your order. It has 2 channels, 2MHz bandwidth and 10 MSPS sample rate per channel and it has updatable firmware.
Model: Minis
Color: Red
Warranty: 2 years
Weight: 0.2 lb (100 grams)
Sampling Time: 10 MSPS
Number of Channels: 2
Resolution: 12bit
Bandwidth: 2MHz
Input Voltage Range: ±15V, ±50V, ±80V
Input Impedance: 1MΩ
Supply Voltage: 5V via Micro USB
Supports Firmware Update
Single, Normal and Auto Mode Trigger
XY Mode, FFT etc.
Excel, Matlab, PNG and PDF Export
Small
Minis has been carefully designed and produced with handmanship to give you the simplest measurement experience. With its exceptionally compact design, Minis can fit into your pocket!
Easy to Navigate
Compared to the traditional oscilloscopes, Minis gives you the freedom and flexibility by saving you from all the unnecessary buttons. Using Minis application, you can navigate through it simply and perform different operations with just a few finger movements.
Supports Firmware Update
Can you imagine being able to update the embedded software of an oscilloscope using your phone? It is now possible within a few seconds and your Minis will always be up to date.
Autoset
Autoset makes signals meaningful for you with a single magical touch. Quick as a flash!
Math
With Minis it's that simple to do mathematical operations between two signals and change their color, gain or unit!
Measurements
Measurement section provides all the information you need in a tabular form. You can edit the table as you like by adding or removing additional information.
FFT
Minis performs FFT operation for you with a maximum performance. You can put all the signals into the FFT process at the same time, including mathematical operations. Luckily now you can display both scope and FFT on one screen!
XY
Minis presents you the most customizable XY mode. You can use the mathematical operations in this mode and zoom with finger gestures.
Export
Minis allows you to export Scope, FFT and XY sections. You can select the signals you want to share. In addition, you can print all the output as CSV or use it digitally in 3rd party applications.
Average & Persistence
With Minis you can perform 32 level average and persistence without any slowdown.
