Powertech - Model Mistkiller -Mist Collector
- Re-usable
- Safe & Secure
- Low Maintenance
- Eco Friendly
- Factory Support
Mistkiller™ can be used effectively for the capture and control of mist generated by the use of water-based liquids, typically from CNC and non-CNC machining, cleaning chambers, spraying systems, etc. The mist condenses inside the Mistkiller™ and the condensed liquid may be drained out into the generating equipment for re-use.

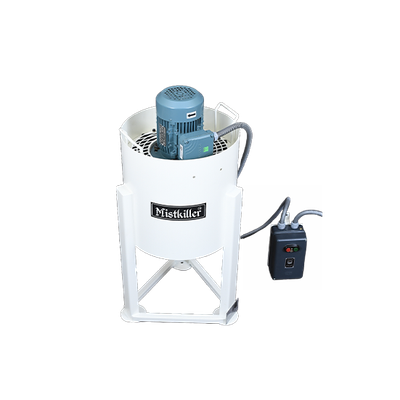

The Mistkiller™ can be machine-mounted (built-in stand) or mounted on a separate groutable stand. Interconnection between the generating source and the Mistkiller™ uses a flexible or rigid PVC duct with the pollutant being sucked through an exhaust port on top or the side of the generating equipment.
For extraction of mist from oil based liquids like neat cutting oil, we suggest the use of an Electro Static Fume Extractor.

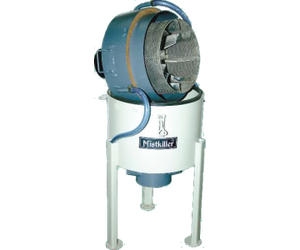

The built-in suction fan driven by an induction motor provides a powerful suction which sucks the mist into the Mistkiller™ through the exhaust port of the generating equipment and the connecting PVC duct. A prefilter(optional) consisting of a small chamber with aluminium flakes provides the initial gross filtration of the mist. The high speed rotation of the special suction fan generates a centrifugal force which throws the mist against the inner side of the Mistkiller™ enclosure. The mist condenses under this pressure and the collected liquid flows down through the PVC duct and returns to the generating equipment for re-use. The outlet of the Mistkiller™ is provided with foam/steel media used as a postfilter. The equipment requires just periodic washing of the mesh prefilter and the foam/steel postfilter with a high pressure water jet.
