- Patented Injection Check Valve

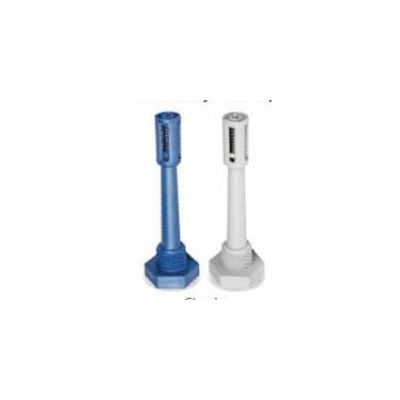

The Mister Mist’r patented injection check valve from Agri-Inject is recognized as the industry standard for injection quill applications and is the most trusted piece on the market. The Mister Mist’r line of injection check valves uses a four way spray that instantly atomizes the liquid being injected into the irrigation stream. The result is complete suspension and even distribution through your entire irrigation system. The Mister Mist’r also functions as a positive, two way check valve to prevent backflow of water into the chemical supply tank AND also prevent accidental leakage of process fluid into the mainline water stream during shutdown.

  • Four directional release for positive mixing and improved product distribution and effectiveness
  • Positive mechanical spring/elastomer seal shut-off
  • Available in corrosion resistant polypropylene, PVDF, CPVC, and 316 Stainless Steel
  • Moving parts are continually cleaned by water
  • Meets state and federal injection check valve regulations
  • 3/4” MNPT for insertion into irrigation line
  • 1/4” FNPT, 1/2” FNPT, and 1/2” MNPT inlet thread options depending on model
