Glen-Mills - Model MM 200 - Mixer Mill

Glen-Mills - Model MM 200 -Mixer Mill

FromGlen Mills Inc

SHARE

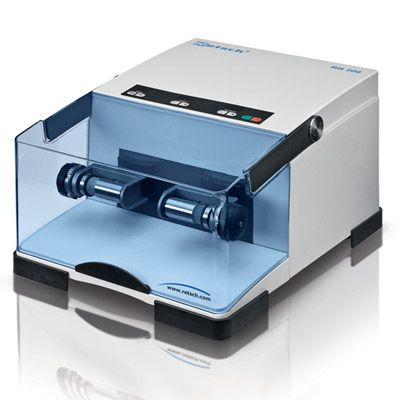

The mixer mill MM 200 is a compact versatile benchtop unit, which has been developed specially for dry grinding of small amounts of sample. It can mix and homogenize powders in only a few seconds. It is also perfectly suitable for the disruption of biological cells as well as for DNA/RNA extraction. You may also be interested in the High Energy Ball Mill Emax, an entirely new type of mill for high energy input. The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time.

Most popular related searches

DNA/RNA extraction

tungsten carbide

compact benchtop unit

laboratory homogenizer

Alloys, Animal Feed, Bones, Ceramics, Cereals, Chemical Products, Coal, Coke, Drugs, Glass, Grains, Hair, Minerals, Oil Seeds, Ores, Paper, Plant Materials…

Reproducible, efficient grinding, mixing and homogenization in seconds
Powerful grinding by impact and friction, up to 25 Hz for up to 20 samples per run
9 SOPs can be stored
Wide range of accessories including various jar and ball sizes, adapter racks, grinding tool materials

The grinding jars of the MM 200 perform radial oscillations in a horizontal position. The inertia of the grinding balls causes them to impact with high energy on the sample material at the rounded ends of the grinding jars and pulverize it. Also, the movement of the grinding jars combined with the movement of the balls result in the intensive mixing of the sample.

The degree of mixing can be increased even further by using several smaller balls. If several small balls are used (e.g. glass beads) then, for example, biological cells can be disrupted. The large frictional impact effects between the beads ensure effective cell disruption.

Applications: size reduction, mixing, homogenization, cell disruption
Field of application: agriculture, biology, chemistry, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material: hard, medium-hard, soft, brittle, fibrous
Size reduction principle: impact, friction
Material feed size* <= 6 mm
Final fineness*: ~ 10 µm
Batch size / feed quantity*: max. 2 x 10ml
No. of grinding stations: 2
Setting of vibrational frequency: digital, 3 – 25 Hz (180 – 1500 min-1)
Typical mean grinding time: 30 s – 2 min
Dry grinding: yes
Wet grinding: –
Cryogenic grinding: –
Cell disruption with reaction vials: yes, up to 10 x 2.0 ml
Self-centering clamping device: –
Type of grinding jars: with push-fit lid
Material of grinding tools: hardened steel, stainless steel, tungsten carbide, agate, zirconium oxide, PTFE
Grinding jar sizes: 1.5 ml / 5 ml / 10 ml / 25 ml
Setting of grinding time: digital, 10 s – 99 min
Storable SOPs: 9
Electrical supply data: 100-240 V, 50/60 Hz
Power connection: 1-phase
Protection code: IP 30
Power consumption: 100 W
W x H x D closed: 371 x 266 x 461 mm
Net weight: ~ 25 kg
Standards: CE
