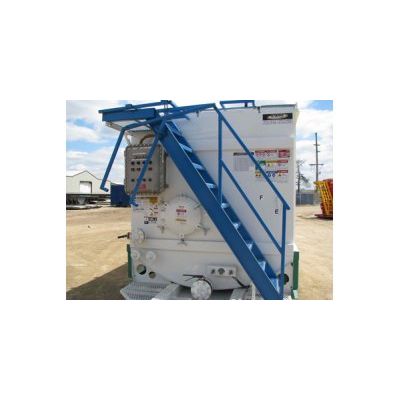

Mixer Tank

Technical Information

• MX4-452
• PRODUCT DATA SHEET
• MIXING FIXED AXLE FRAC TANK

DESIGN FEATURES

• Easy-to-Clean Design Reduces Cost
• Semi-Round Bottom Floor for Complete Clean-Out
• Smooth Wall Interior for Easy Cleaning
• No Corrugations
• No Internal Rods

ADDITIONAL SAFETY FEATURES

• Safety stairway w\ easy access to top of tank
• Grip Strut steps to prevent slipping
• Handrails and Stairways painted safety yellow for high visibility
• Safe Operation reminder decals applied
• Attached Strapping Charts

WEIGHTS AND MEASURES

Capacity: 435 BBL (18,270 gallons)

Height: 9’-6” (Grade to Roof Deck)
8’-6” (Wall)

Width: 8’-6” (Outside)
8’-0” (Inside)

Length: 46’-0” (Front Nose to Rear)
42’-0” (Tank Body)

Weight: 32,840 lbs.

STRUCTURAL DESIGN

Floor: ¼”thick ASTM A36 carbon steel (Semi-Round)

Sides/Ends: ¼” thick ASTM A36 carbon steel

Main Roof: ¼” thick ASTM A36 carbon steel

Wall Posts: 3/16”x3”x6” ASTM A36 formed channel

Roof Members: 3” Structural Channel

FEATURES

• Manways: (3) 22” Dia. w\ Wingnut Closure – Front\Side\Rear
• Buna-N Gasket
• (2) 36” Dia. w\ Wingnut Closure – Top
• Buna-N Gasket
• Relief Valve: 16 oz./in2 pressure setting, 0.4 oz./in2
• vacuum setting; Buna-N seal.
• Valves: 6”- wafer butterfly valve.
• Cast iron body, Buna-N seat & seals, 316 SS
• stem, Nylon coated ductile iron disk w/ plug and chain.
• Front Drain: 6”-150# flanged w\ butterfly valve
• Rear Drain: 6”-150# flanged w\ butterfly valve
• Rear Feed Line: 4” w\ Cap & Chain
• Roof Connections: (1)Vapor Recovery: 4”-150# Threaded Flange & Plug
• (1) Auxilliary Port: 4”-150# Threaded Flange&Plug
• Stairway: 24” Bolt-On w\ Landing – OSHA Compliant
• Top Walkway: Galvanized Grating \ Fold-Down Handrailing
• OSHA Compliant
• Axle: 77½” track \ 22,500# Capacity \ 5” Rd
• Suspension: Spring \ 3-LEAF SPRING \ HIGH-ARCH
• FLANGE MOUNT HANGERS \ ¾” SEAT
• 22,500# CAPACITY
• Tires: 11R22.5 \ 14-Ply
• Wheels: Steel \ Hub-Piloted

ELECTRICAL SPECIFICATIONS

• Motors: 10 HP \ 480V \ 3Ph \ Explosion Proof
• 215TC Frame \ 1800 RPM
• Mixer Paddles: Dual Mixer Paddles
• 42” Dia. Lower Impeller
• 24” Dia. Upper Impeller
• GearBox: 1800 RPM Input \ 24.92 Ratio \ 72 RPM Output
• Hollow Shaft Flange Mount Reducer
• 2 3/8” Output Shaft
• Control Panel: Explosion Proof \ Single Electrical Supply Connection
• Individual Motor Starters and Circuit Breakers
• UL Classified for use in Class I Div I Groups B,C,D
• and Class II Groups E,F,G and Class III

PAINT SPECIFICATIONS

• Interior Blast: None
• Interior Coating: None
• Exterior Blast: SSPC-SP-6 \ Commercial Blast
• Exterior Coating: Carboline Carbothane 8812 \ 8845 DTM
• High Gloss Polyurethane
• 3 – 5 Mils D.F.T.

OPTIONS

• Steam Coil Additional Aux. Ports
• Gel Line Additional Manways
• Jet Line ABS Brake System
• Float Gage DOT Light Package
• Feed Lines Stainless Steel (340 / 316)
• Custom Interior Coatings Custom Exterior Colors
• 2, 3, or 4 Mixers Available

TESTS/CERTIFICATIONS

• Tests Performed: Hydrostatic Water Test
• Electrical Function Test
• Brake System Test

To the best of our knowledge the technical data contained herein are true and accurate at the date of issuance and are subject to change without prior notice. No guarantee of accuracy is given or implied because variations can and do exist. NO WARRANTY OR GUARANTEE OF ANY KIND IS MADE BY MANITEX SABRE INC., EITHER EXPRESSED OR IMPLIED.
5420 E STATE RD 8 • KNOX, IN • 574-772-5380
