Vermeer - Model MX125 -Mixing System
Optimize your horizontal directional drill’s performance with the MX125. Designed for small-diameter, short distance horizontal directional drilling jobs, the MX125 is powered by a 6.7 hp/5 kW Honda gas engine. It comes with your choice of a 300 gallon/1136 L or 500-gallon/1892-L tank.
- Delivers greater flexibility when mounting to a trailer due to its modular design.
- Works with a variety of Vermeer drills, including D6x6, D7x11 Series II, D10x14, D16x20 Series II and D20x22 Series II, D24x40 Series II and D36x50 Series II.
- Narrow profile allows for convenient side-by-side trailering with the Vermeer D16x20 Series II.
- See your Vermeer dealer for comprehensive service and genuine Vermeer replacement parts.

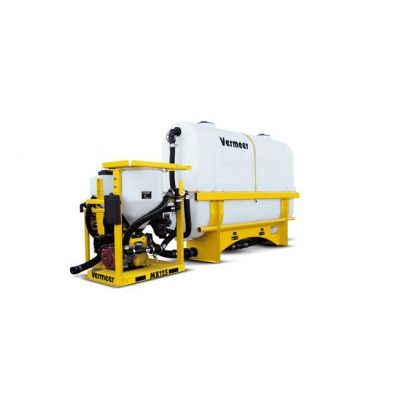

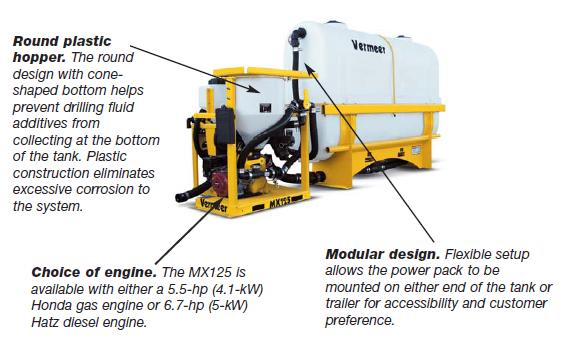

The MX125 drilling fluid system is designed for efficient mixing action of fluid additives in a range of horizontal directional drilling applications. With a modular design, the system offers a variety of mounting configurations for compatibility with differing trailer setups. An available 300-gal (1135.6-L) or 500-gal (1892.7-L) mixing tank option with either a gas or diesel engine adds to the system’s versatility to help meet contractor preferences.
At just 22" (55.8 cm) wide at the base, the MX125 [500- gal (1892.7-L) tank option only] is the narrowest 500-gal (1892.7-L) capacity drilling fluid system available – ideal for comfortable side-by-side trailer transport with a horizontal directional drill. But don’t let the system’s sleek design fool you. With multiple sheer points, up to four roll jets, and a large fuel tank, the MX125 is ready to meet your demands.
Narrow profile. The MX125 [500-gal (1892.7-L) option only] features a narrow profile for ease of side-by-side trailer transport with a horizontal directional drill.
Power Pack
Length (power pack only): 36" (91.4 cm)
Width: 30" (76.2 cm)
Height: 44.5" (113 cm)
Weight: 340 lb (154.2 kg)
Fuel capacity: 5 gal (18.9 L)
Pump type: Monarch 3" (7.6 cm) grease seal pump
Mixing action: Venturi / Recirculation
Integrated mixing hopper: Yes
Antifreeze capacity: 5 gal (18.9 L)
Engine Options
Gas: Honda
Gross horsepower: 5.5 hp (4.1 kW)
Diesel: Hatz
Gross horsepower: 6.7 hp (5 kW)
500-Gal (1892.7-L) Tank Option
Length (tank only): 106" (269.2 cm)
Width: 28.5" (72.4 cm)
Height: 69.5" (176.5 cm)
Mixing jets: 4 inline eductor nozzles
Weight: 687 lb (311.6 kg), empty
300-Gal (1135.6-L) Tank Option
Length (tank only): 72" (182.9 cm)
Width: 38" (96.5 cm)
Height: 52" (132.1 cm)
Mixing jets: 3 inline eductor nozzles
Weight: 600 lb (272.2 kg), empty
Supply Hoses
2" (5.1 cm)
