MixRite 2.5 - Model 28020400000 -Dosing Pump

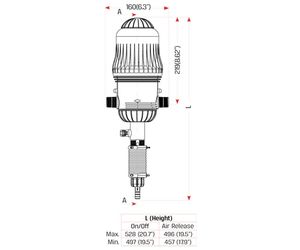

Product Code: 28020400000. Name: MixRite 2.5. Material: PP+FG. Thread Type: BSPT. Color: Grey. Working Pressure: 0.2–8 bar. Thread Size: 3/4″. Water Pressure: 0.2–8 bar [3 to 116 psi]. Dimensions: 22″ × 7.27″. Weight: 4 pound [1.81 kg]. Min Pressure Loss: 0.2 bar. Max Pressure Loss: 1.4 bar. ON OFF System: No [Air Release]. Air Release: Yes. Chemical Bypass: Standard. Dosage Rate: 0.4%–4%. Chemical Resistance: Standard. Foot Valve: Optional. Min Injection Per Hour: 0.028 l/h [0.007 gph]. Max Injection Per Hour: 100 l/h [26.5 gph]. Flow Rate Range: 7–2500 l/h [0.03 to 11 gpm].
Application
The MixRite can be used in the application of fertilizer and chemicals through an irrigation system. This technique can reduce fertilizer application costs. It may also improve nutrient efficiecy by applying them closer to when and where plants need them.
Comments
MixRite`s main advantages are: easy to install, no electricity needed, easy to adjust dosing percentage, replaceable seals, works at very low flow rate, easy to field repair, highly chemical resistant, perfect blending, highly resistant to U.V.
Overview
MixRite is a water driven proportioning injector for pumping an additive into a water line at a consistent induction rate over varying water pressure and flow rates.
- Name: MixRite 2.5
- Material: PP+FG
- Thread Type: BSPT
- Color: Grey
- Thread Size: 3/4″
- ON OFF System: No [Air Release]
- Air Release: Yes
- Chemical Bypass: Standard
- Dosage Rate: 0.4%–4%
- Chemical Resistance: Standard
- Foot Valve: Optional
