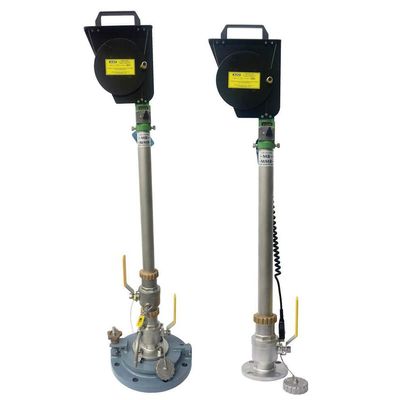

MMC - Flexi-Dip Restricted Sampling Tape Systems

SHARE

Flexi-Dip Restricted Sampling Tape systems are available for use with MMC’s various vapor-control valves. Restricted tapes are designed for manual sample collection, sounding and tank bottom dryness checking.

Most popular related searches
vapor control
control valve
sampling valve
electronic gauging tape
sample collection
gauging tape
diverter valve
vapor control system
vapor sampler
vapor sampling
  • Accuracy of Tape Reading:+/- 1/8 inch (3mm), +/- 0.01% of F.S. tape LGT (F.S. = Full Scale).

  • Application: R-Restricted sampling (1, 1/2- and 1/3-liter) through MMC vapor control-valve.

  • Tape Lengths: 100ft/40m, stainless steel


Restricted Sampling System 100′ Tape, Includes built in sampling valve for use on existing MMC vapor valves.

Includes Sampler barrel, 1/2 ltr stainless steel zone sampler, sample collection diverter valve, sample bottle fill attachment, 1 sample bottle and 1 24mm dia. stainless steel innage bob.

Flexi-Dip Restricted Sampling Tape Drawing number D-2562-1FS, 100′ graduated tape, includes 1/2 liter zone sampler and sounding bob. Designed for use with the full range of MMC vapor control valves. This unit does not have a built in sampling valve therefore, to dispense the sample, the vapor control valve must be closed, the samplers removed from the valve, the internal samplers lowered out of the bottom of the exterior tube and transferred into a bottle or sample vessel.
