MMM-Tech - Model PMS -Scholander Pressure Chamber

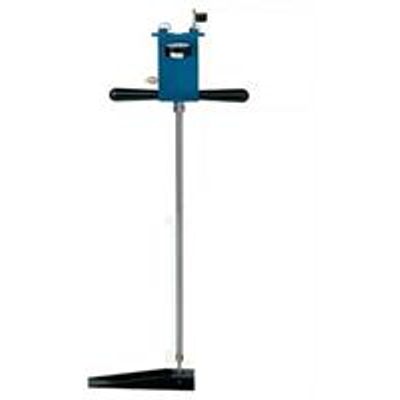

The PMS Scholander pressure chamber is a construction with integrated pump to build up the necessary air pressure for measurements. No external pressurized gas tank necessary. The pump to create high pressure is conveniently equipped with a foldable foot-rest. Pressure increase per pump stroke between 0,1 and 0,4 bar.
Most popular related searches
compression gland gasket
field monitoring
external tanking
safety goggle
sealing system
gaskets
gasket sealing
safety data
manometer
pressure monitoring
PMS Scholander chamber weights only 3,4 kg with integrated foot-rest for free hands during measurements. No external gas tank necessary for in-field measurements, therefore:
- easy measurements also in difficult terrain
- reduced risk of accident
- reduced labor in field during measurements
- No cost for re-filling the external gas tank and for tank lease / purchase
- Weight: 3,4 kg
- Dimensions: 97,5x 35,5 x 15 cm (H x W x D)
- Preassure Chamber: 12,5 x 7,0 x 1,6 cm, rectangular, Aluminium
- Range: 0-20 bar, manometer class 1,0, optional 0-6 bar
- Reading: integrated 7x magnifier
- Lug Lid: Compression Gland Sealing System, three versions:
- Round Petioles, diameter 1 to 3 mm
- Round Petioles, diameter 3 to 6 mm
- For bladed leafes of Grain and Grasses up to 15 mm
- Safety: Built-in safety valve preventing over pressure
- Conformity: CE; EN ISO 12100-1:2003; EN ISO 12100-2:2003;
- 97/37/EC Annex I
- fruit trees, grapes, viticulture (small-leaved varieties), testing of cultivars, scientific applications
- Including: PMS Scholander Chamber, 5 extra Compression Gland Gaskets, 1 extra Lug Lid Sealing Gasket, O-Ring lubricant, special lubricant for pump, safety goggles.
