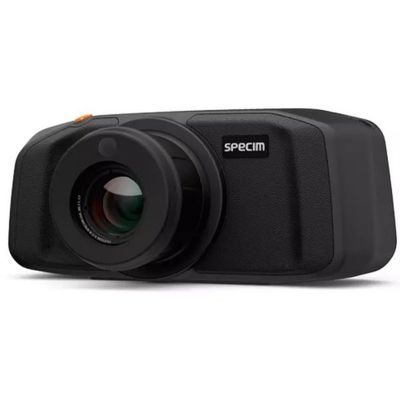

Konica Minolta - Model Specim IQ -Mobile and Turnkey Hyperspectral Imaging Camera

• Spectral camera in the VNIR (400-1000nm)
• Integration time 1 – 500 ms
• Camera-like usage with a sensitive touchscreen
• Immediate inspection of results and feedback wit visualization of spectral profiles
• Portable, compact, and lightweight

Hyperspectral imaging (HSI) cameras reveal the spectral signatures of materials and compounds, allowing human eyes to see the invisible. They help to identify, measure, and locate different materials thanks to their spectral signatures, and their chemical and physical properties.

Specim IQ camera bring the world of HSI one step closer to a broad range of applications. Thanks to its portability, integrated colored display, and camera-like usability, identifying, analyzing and detecting materials become easier.

Aim the IQ camera at the target you want to analyze, illuminate, adjust the integration time and focus, and shoot! The results will be directly visible from the camera display for immediate vizualiation of spectral profiles.

• 400-1000 nm with 7 nm resolution
• Integration time 1 – 500 ms
• Square spectral image of 512 x 512 pixels
• 5 Mpix Viewfinder camera
• GPS sensor and  IP52 housing (dust resistant, protected against light rainfall)
• Pro dSLR size, 1.3 kg
• Colour touchscreen and physical buttons
• “Wizard” Workflow to assist the user to record and validate data
• Immediate inspection of results

• Spectral camera : VNIR 400-1000 nm (CMOS)
• Viewfinder camera : 5 Mpix
• User interface SW : By Specim
• Storage : SD card max 32 GB
• Data Format : Specim Dataset with ENVI compatible data files
• Battery : 5200 mAh Li-Ion (Type 26650)
• Operational time : Appx. 100 measurements with one SD card and battery
• Display & keyboard : 4.3 ” touch screen + 13 physical buttons
• Camera interface : USB Type-C, WiFi
• Size : 207 x 91 x 74 mm (depth with lens 125,5 mm)
• Weight : 1.3 kg
• F/number : 1.7
• Wavelength band : 400-1000 nm
• Spectral resolution FWHM : 7 nm
• Spatial Sampling : 512 pix
• Spectral bands : 204
• Peak SNR : > 400:1
• Object distance : 150 – ∞ mm
• FOV : 31 x 31 deg
• FOV at 1 m : 0.55 x 0.55 m
• Temperature, operational : +5°C – +40°C
• Humidity, operational : 95% non-condensing
