Liaoyuan - Model QLB10 - QLB80 -Mobile Asphalt Plant
QLB series is a kind of small-sized batch mixing plant without mixing tower, transportation optimized. It output ranges from 10 ~ 80t/h, suitable for small and medium-sized road construction project which needs frequent site relocation.
Most popular related searches

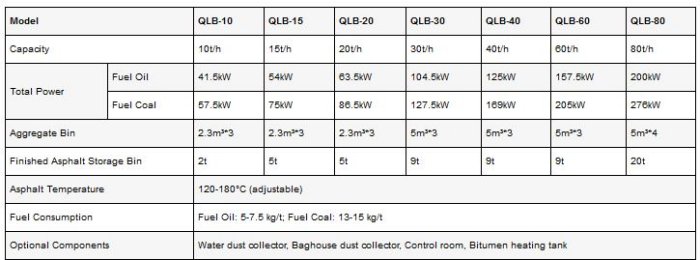

- Product Capacity: 10 t/h ~ 80 t/h
- Highlights:
Batch mixing, less land occupation;
Precise weighing and screening, ease of relocation
- Batch mixing plant without mixing tower, specially-designed structure, less footprint;
- Mixing system is consisting of 1 drying drum (QLB60 and QLB80 with 2 cold feeders and two drying drums)and 1 mixer; high batching and mixing efficency;
- Accurate measurement on aggregate,filler, bitumen and other additives, producing good quality finished asphalt;
- PLC control sytem, ease of operation; manual / automatic operation mode.
- Mobile chassis can be added as desired, which makes the plant mobile and ease of relocation;
- Cold /diesel/gas burner as desired; side-mounted /bottom-mounted hot asphalt silo as desired;
- Lower initial investment, highly cost-effective.
