Europress - Mobile Channel Trailer Baler

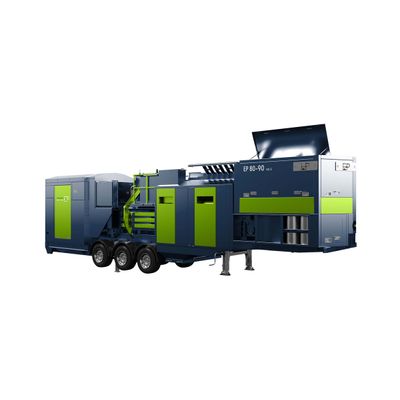

In the vehicle-mobile variant, our location-independent channel balers are mounted on a trailer and can thus be brought to their place of use. Like the hook-lift mobile solution, which is available as an alternative, the vehicle-mounted channel baler is an energy-efficient and safe machine for pressing directly on site. It can be requested with wire or twine binding.
- Tying: 6-Fold Vertical
- Press force: 80
- Filling opening: 1000 x 1450
- Channel cross-section: 750 x 1100
- Drive power: 2 x 22
- Bale weights: 400 - 550
- Bale length: bis 1,8
- Length:: 8300
- Width:: 1620
- Height:: 2250
- Total weight: 40
Weight capacity depending on bulk weight [theoretically] in tonnes per hour
- 20 - 30 kg/m³: 11
- 35 - 50 kg/m³: 18
- 60 kg/m³: 22
- 100 kg/m³: 36
For closing the press plate during the pressing process so that no material enters the lance guide slots. Hydraulically driven closure plate mounted on the press plate.
This closes the needle slots during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and reduced cleaning and maintenance intervals.
For closing the bottom during the pressing process so that no material gets into the lance guide slots. Hydraulically driven closure plate installed under the bottom wear plates.
This closes the needle slots in the press floor during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and low cleaning and maintenance intervals.
Perforator for perforating and squeezing PET bottles, retractable from the side or rear.
The perforator is equipped with two drums that rotate in reverse direction shortly after each other and are equipped with over 1000 spikes
The spikes are aligned so that the bottles are not trapped between them.
WEP whirler retractable from the rear on a console with a drive power of 22 kW.
This allows smooth surfaces, for example of catalogs, to be broken, so that better compaction is possible.
10 mm thick inner lining of the entire bale chamber made of wear-resistant steel in bolted design.
Special equipment for artificial mineral fibresEquipment package to equip the duct baler ready for approval for the compression of artificial mineral fibers.
For closing the press plate during the pressing process so that no material enters the lance guide slots. Hydraulically driven closure plate mounted on the press plate.
This closes the needle slots during the press stroke. These needle slots are only opened during the tying process.
As a result, we guarantee a wire-crack-free workflow and reduced cleaning and maintenance intervals.
The mobile channel balers can be used in a wide range of applications. The flexible machines can be used at changing locations to compress waste materials. Materials such as paper, cardboard and plastics, but also natural waste of various kinds, are compressed into solid bales that require significantly less storage and transport and are suitable for reuse. Both the vehicle-mobile and the hook-lift-mobile solutions are easy to handle, powerful and reliable all round.
- Press force of 80 Tons
- Stable construction of the base frame
- Height adjustability of the press shield
- Highest flexibility
- Optionally with piston bottom valve
