DEL - Mobile Clarifiers & Thickeners

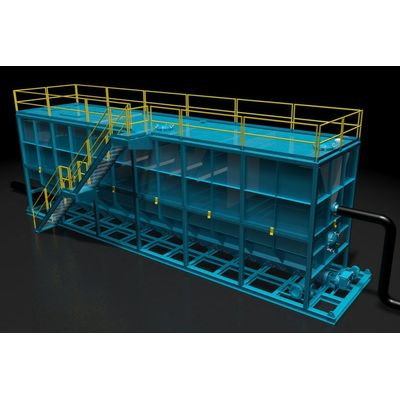

DEL has designed a versatile and mobile Clarifier & Thickener to handle the higher flow rates required by many dredging and dewatering projects with a total working capacity of 45,000 gallons. The tank is built in 2 sections, an upper and lower section, for ease of transport.  The tank requires only 2 flat bed trucks and width permits for hauling.  The flange joining the 2 sections together is designed for fast, leak free assembly.  The tank can be unloaded and assembled on the job site and ready for use in a matter of a few hours.  The tank is equipped with a tilted plate baffle system, settled solids conveyance system and effluent overflow trough system to provide removal of settled solids and discharge of a clean effluent.  In most cases flow rates up to 3,000 gpm can be accommodated.
