Hywema - Model RG 2 -Mobile Column Lift

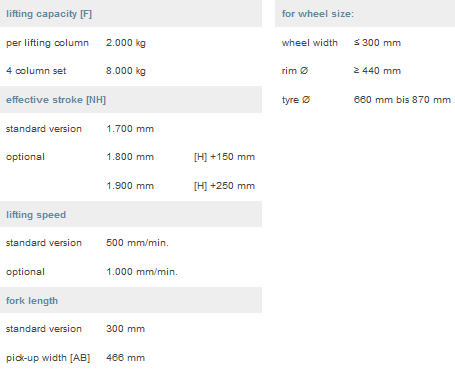

lifting capacity: 2.000 kg each lifting column  standard version: 4 column set with 8.000 kg lifting capacity (other column sets on request)

optional: For permanent outdoor-usage or washing bay operation, galvanized column lifts are available

Mobile Column Lift RG 2 - System schematic

• 4 column set
• 4 x Mobile Column Lift RG 2
• control unit SK 4 at RG 1
  + wired remote control with 15 m cable
• mains connection 400 V / 50 Hz
  (special voltages on request)
• ready for use cabling
• certified in compliance with EN1493:2010
  and Annex X of the Machinery Directive 2006/42/EG
• inclusive CE-Sign and declaration of conformity
