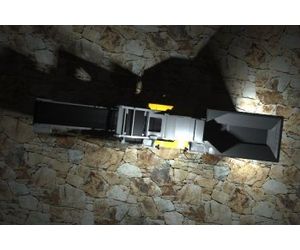

RM - Model 100GO -Mobile Crusher System
The RM 100GO! is the star among the mobile crushers - a mobile power pack for every application. It is ready for action within minutes and can handle a wide variety of materials extremely quickly. Weighing in at only 29 t when empty, it crushes up to 250 tonnes of material per hour.
The RM 100GO! is the powerful high performance mobile crusher among the mobile crushers, exceeding all your expectations. Weighing in at only 29 t when empty this is a particularly high-capacity machine which can crush up to 250 t/h. This mobile power pack is ready for action within minutes and can process a wide variety of materials such as rubble, asphalt and concrete extremely quickly.
Intuitive and straightforward operability is a trademark of the high quality mobile crushers produced by RUBBLE MASTER. The diesel-electric drive system reduces operating costs by up to 30% and the optimised impact plate geometry ensures not only high throughput but also extremely high-quality, homogeneous aggregate which can be reused immediately.
- Throughput: Up to 250 t/h, depending on material
- Inlet opening: 950 x 700 mm
- Crusher unit: RUBBLE MASTER impact crusher with 4 hammer system and 3 rotor speeds
- Power unit: John Deere diesel engine, 6 cylinders 235 kW at 1800 rpm, Maximum flexibility with hybrid drive
- Weight: 29,000 kg
RM GO! SMART represents a new era in the interaction between humans and machines.

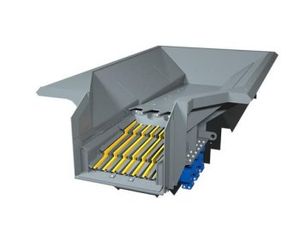

Get more out of your crusher with the RM Active Grid – beyond known pre-screening efficiency for increased profitability! The patented RM Active Grid reduces wear costs, increases the throughput of your crusher and maximises your profitability! It consists of rigid and movable sections of bar mesh that are configured…

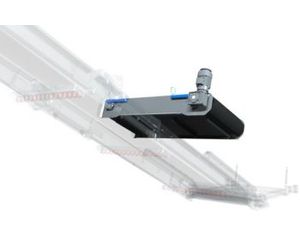

RM belt scales
The RM belt scales measure the material weight on the discharge belts and sends this data to the RM GO! SMART App where it can be displayed at any time.
Lighting package
With additional floodlighting, you have sufficient light to work safely even at dawn and dusk. The lighting package Plus includes the lighting mast, engine compartment lighting and periphery lighting as well as warning lights.

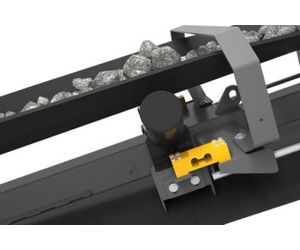

Magnetic separator
The short distance from the crusher outlet to the magnetic separator avoids blockages and, thanks to the strong permanent magnet, metal is removed from the crushed material.

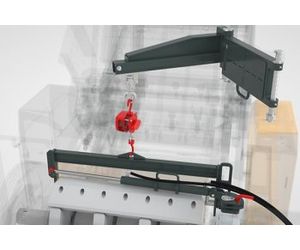

Hammer changing device
Using the hammer changing device including lifting hoist you save time and money and increase safety when changing over hammers on your mobile crusher.

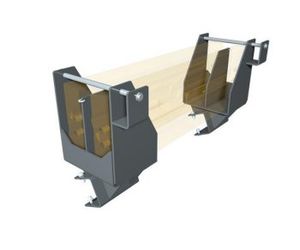

Hammer holder
With this holder you can always have a replacement set of hammers available on-site. The holder provides space for two replacement hammers directly on the machine.

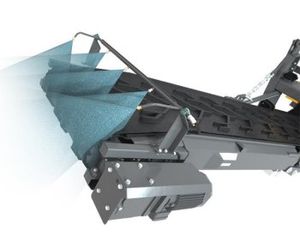

Thanks to the dust suppression system you can reduce dust emissions and increase acceptance of the mobile crusher when operating in residential areas.

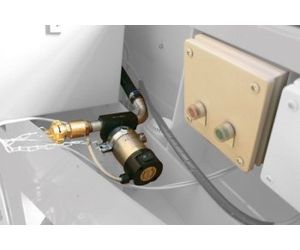

Integrated fuel filling pump
Thanks to the integrated filling pump including hose, overflow switch and automatic switch-off system you no longer need an external pump to fill up.
The mesh deck screen was developed to make our crushers even more efficient. The crushed material is screened to the desired end aggregate size in a single pass. Including precise sorting accuracy.
