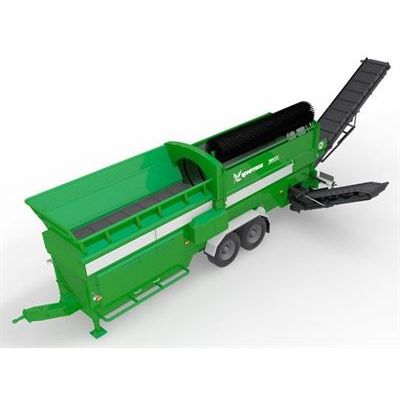

Komptech - Model Maxx / Maxx E -Mobile Drum Screen
The Maxx drum screen was built for use in mid to large-sized composting operations. Its rugged construction and high-performance components make it suitable for almost any screen application and it is a professional solution for contracting companies. Electrically driven variants are available as alternatives: On the “E“ variants, electric motors are used in place of hydraulic drives. Power comes directly from the mains or, when required, is produced by an integrated diesel generator. The electric mode yields a reduction in energy consumption and results in savings in replacement/consumable parts and servicing costs. Performance: Diesel engine with 62,5 kW (E: optional 50 kVA). Throughput: up to 120 m³/h. Screening area: 22,5 m². Mobility: 2-axle trailer.
Built to last
Large hopper with > 5m³ feed volume and automatic hopper belt control
Komptech plus
DRUMGRIP drive with the ruggedness of a chain and the quietness of a friction drive
More business
Maxx E: Up to 75% lower energy costs, up to 30% lower servicing costs
Your choice
Screen drum with fixed hole size or core drum with quick-change screen segments
Low-Wear Drum Drive
The patented DRUMGRIP drive system provides smooth, low-noise, low-wear transmission of the power to the drum. The system adjusts automatically to the required bearing pretension and to the screening drum roundness.
Everything Available
A comprehensive range of well-conceived options ensures the fulfilling of virtually all customer requirements. Segment outer scrapers are cleaning a drum with large hole sizes, wider and longer belts with controllable belt speed simplify the material discharge and a track drive ensures going on difficult ground.
Costs Saving
Power comes from the mains or, when required, is produced by an integrated diesel generator. Saving potential (compared to hydraulic drive):
- up to 75% (25% with generator) lower energy consumption
- up to 30% (15%) lower consumable parts costs
- up to 25% (5%) lower operating costs
MAXX E: Simple Operation
Thanks to its fully electronic controller, this drive concept features the highest degree of ease-of-use. The new display mode shows the operating status and all of the functions are clearly visible and easily configurable. An automatic start-up and idling unit simplifies start of operation.
