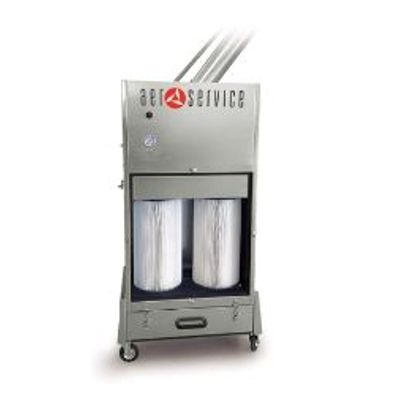

Aer Ecart - Model 2000 -Mobile Dust and Fume Filtration Unit
Portable cartridge unit for welding fumes, fumes from manual plasma cutting operations and grinding particulate.
Most popular related searches
dust and fume extraction arm
dust and fume extraction
extraction arm
fume extraction arm
compressed air
cartridge filter
dust and fume extraction system
welding fume
pollution modeling
smoke extraction
- Different cartridge filter versions may be installed depending on the pollutant.
- All models can be supplied complete with extraction arms of different diameters and lengths, or flexible hoses of different diameters and lengths.
- Efficient filtration
- Expected particulate entrapment - 99.5%
- Automatic cleaning system
- Counter-current compressed air
- The ECART filtering units are created with panels constructed in top quality durable galvanised sheet metal bolted together to maintain the correct weight/durability ratio.
- The main features of these products is the notable capacity for abatement, while at the same time having a much reduced overall size and ease of access to the cartridges.
- Different cartridge filter versions may be installed depending on the pollutant.
- All models can be supplied complete with extraction arms of different diameters and lengths, or flexible hoses of different diameters up to lengths of approx. 20 m.
- Efficient filtration
- Expected particulate entrapment - 99.5%
- Automatic cleaning system
- Counter-current compressed air
- Welding
- Plasma Cutting
- Sanding
- Cutting
- Grinding
- Maximum Air Flow (m3/h)2000
- Maximum Vacuum (Pa)2500
- Filter Surface Area (m3)20
- Filter CleaningCompressed Air at 3 bar
- Motor Size (kW)1.1
- Inlet Size (mm)160
- Electrical Connection230v/50Hz 120v/60Hz
