BioControl - Model 2 -Mobile Gas Measuring Device
The entry-level model for automated gas analysis supporting process optimisation. The Multitec BioControl is a unique measuring system comprising a fixed stationary unit and a mobile gas measuring device. It is used in small to medium-sized biogas plants, landfills, wastewater treatment plants and composting plants.

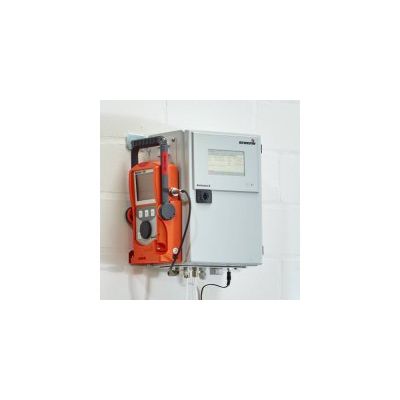

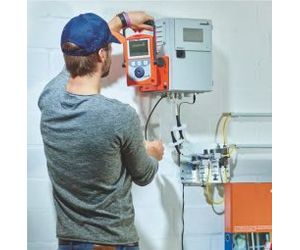

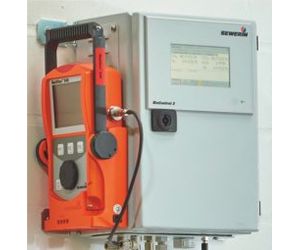

The stationary BioControl 2 automatically monitors and records the gas quality continuously and conveniently at a maximum of two measurement locations. The mobile gas measuring device, either the Multitec® 540 or the Multitec® 545, can also be used to manually calculate measurement values anywhere in a plant. Simply remove it from its docking station and connect it to a measurement location. When it is replaced in the docking station, the protocols are sent to the BioControl 2 and displayed.
With its two fixed measurement inputs, the BioControl 2 meets all the main measuring demands of small to medium-sized plants. For example, it can continuously and reliably monitor the gas quality at the motor and the raw gas composition. The user can individually configure the BioControl 2 to the relevant area of application and demands. The measurement locations and cycles, save intervals, limits and alarm thresholds can be customised according to the application.
The BioControl 2 is non-wearing and low maintenance. It is calibrated and adjusted automatically with test gas (optional). The Multitec® 540 / Multitec® 545 can be easily removed from the docking station and easily posted or transported for servicing.
The Multitec® BioControl system is user-friendly and can be customised to the operator’s needs; it also offers all the necessary standard functions and a high level of safety. The combination of stationary base unit and mobile gas measuring device thus offers a cost-effective and easy switch to automated process optimisation and control.
- Large, state-of-the-art 4.3” colour touchscreen: easy user-defined settings, language selection
- Flexible configuration to individual requirements: measurement locations/cylces, save intervals, limits, alarm thresholds
- User settings can be restored from first day of use (saved on USB stick)
- Safe, reliable measuring results thanks to self-tests during operation
- Sturdy and durable: all relevant components resistant to aggressive gases
- Autonomous and regular saving of all measurement values and settings on USB stick; no data loss, no manual protocols, seamless documentation
- Comprehensive service: stationary unit largely maintenance-free; fast, first-class support thanks to customer-friendly remote maintenance and diagnostics – anywhere in the world by internet; simple automatic calibration and adjustment using test gas (optional)
The BioControl 2, with its two fixed measuring inputs, offers all you need to automatically and thus effortlessly measure the exact gas composition in a plant from a stationary position. The system allows reliable data storage and continuous monitoring. For example, the first stationary measurement location can continuously check the gas composition at the motor while the second stationary measurement location checks the raw gas composition. The mobile measuring device, on the other hand, can be easily used for infinite manual measurements at remote parts of the plant at irregular intervals.
Data can be transferred via LAN, or optionally by Profibus module. The alarm relay can be freely configured via the touchscreen.
