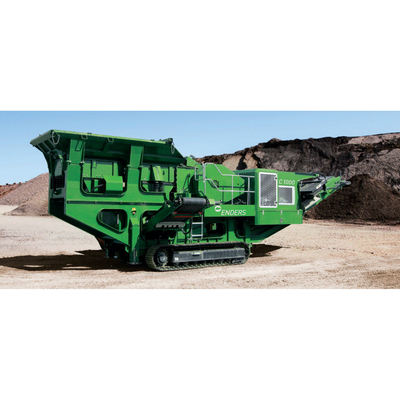

Enders - Model C1000 -Mobile Jaw Crushing Plant
The ENDERS C1000 is a compact single toggle jaw crusher on tracks designed to be used in a wide variety of applications. Whether it is crushing natural stone every day in a quarry or handling construction waste at a recycling center. The ENDERS C WOO is the compact alternative with low operating costs. At a glance: The feed hopper with variable-speed vibration feeder has a capacity of 5.4 m3. Discharge height measures 3.05 meters for the main conveyor belt and 2.10 meters for the hydraulic side belt.
The CAT C6.6 diesel engine rated to 225 hp is also as powerful as it is efficient.
The robust deflection plate minimizes jams and damage to the conveyor belt for smooth, economical, and reliable operation, while a fill-level sensor monitors the crushing area.
Setup times are short and the components can be easily accessed, thanks to the open, maintenance-friendly design.
The tracked undercarriage can move the vehicle at brisk speeds of up to 1.5 km/h. Compact dimensions enable economical standard transport.
The robust, user-friendly control unit ensures easy operation and monitoring of all machine parameters.
