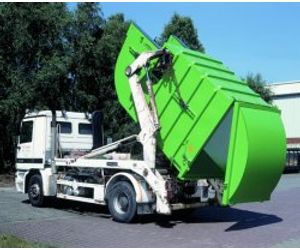

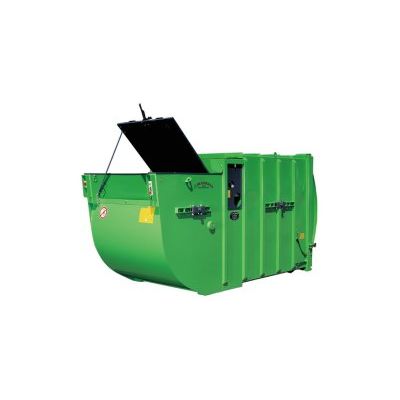

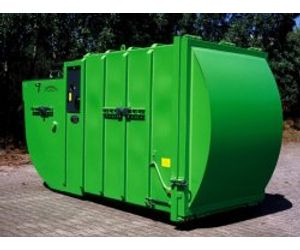

Bergmann - Model MPB 405 -Mobile Pack Bin for Skip-Lift Vehicles

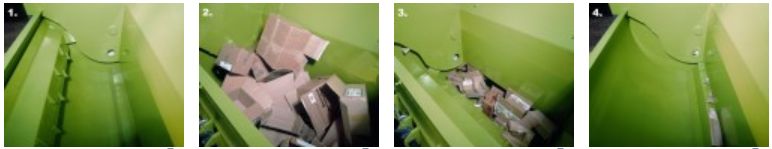

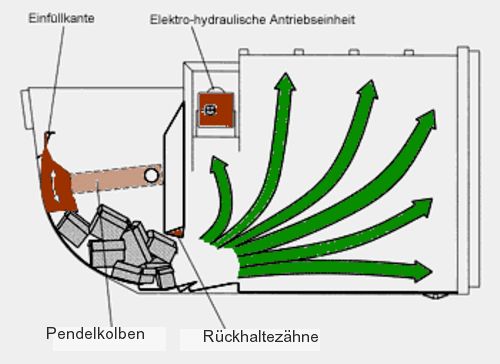

• Illustration of the self-cleaning pendulum blade in rear position
• During the compactor stroke, the entire filling area is available for continuous filling.
• In the return stroke, it can be fed again. The pendulum blade passes under the material and positions the waste ready for the next cycle.
• Illustration of the pendulum blade at the end of the compactor stroke. The garbage was pushed under the break edge into the container.

• THE original with more than 35 years of experience. Invented and developed by BERGMANN
• Well-developed design and technology on the basis of many years of experience
• Ideal for compacting wet waste and residual waste
• Huge loading aperture
• Can be continuously fed with garbage
• Reduction of disposal costs of up to 75%
• Long service life = high availability
• Extremely high compaction depending upon type of garbage to a fraction of the original volume = high filling weights of, on the average, 3 tons of residual waste in the MPB 405 SN 8 and more
• Reduction of the number of emptying journeys to a minimum = drastic savings by fewer disposal journeys
• Comfortable operation by clearly arranged push buttons
• Trouble-free emptying of the container by lateral convexity
• Low corrosion because the hydraulic cylinders have no contact with the waste
• Hygienic self-cleaning (cleaning operation under and behind the compacting piston can be dispensed with)
• Negligible operating noise
• Can easily be expanded due to its modular structure; therefore simple adjustment to different locations
• Lowering of personnel costs for waste handling
• Minimisation of the utility space, thus saving the storage costs of convention containers
• The highest quality standard for more than 35 years
• High, fast and available for spare parts for many years, guaranteed for 15 years!
• Worldwide service network

• Quality hydraulic pump with central hydraulic block
• Adjustable pick-up pistons to adjust on various skip-lift vehicle manufacturers
• Autotimer
• Overload protection
• Purely hydraulically controlled and, thus, durable reversing valve
• Central bolting device with durable, attractive spindle catch
• Wedge bolting device for maximum watertightness
• Optical oil level indicator and oil level monitoring
• Working hour counter
• TÜV, GS

• ¾ full and/or 100% full signal
• Full signal via GSM Module to you or disposer
• Certified watertightness due to liquid filling
• Manually or hydraulically operated lid covering the loading aperture in various versions (protects against filling by unauthorised persons and the penetration of rain water)
• Rubber seal of the lid (reduces odors, prevents penetration of rain water)
• Integrated lift-tipping-device for bins with pivot take-up (lifts the waste bin and tilts the contents into the compactor)
• Comb lifting system for the tipping-device
• Key switch instead of start button
• Rolls in the back and pick-up piston on the compaction blade for roll-off skip loaders
• Remote control via cables
• Photo electric cell in the filler area (machine starts, as soon as something is thrown into the funnel tube)
• Fire fighting point
• drainage device
• … and many more
• … ask for special versions

Everywhere, where garbage with a high liquid portion accumulates, as in:

• Supermarkets
• Large-scale catering establishments, hotels
• Department stores
• Hospitals and homes for the elderly
• Food productions
• Printing houses
