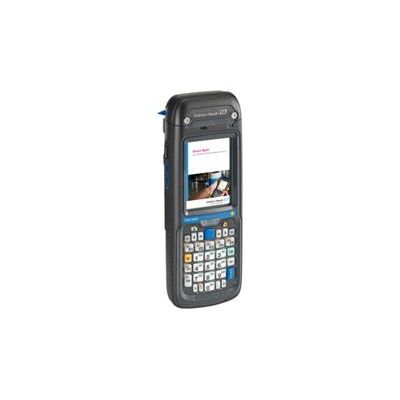

Field Xpert - Model SFX370 -Mobile Plant Asset Management
Mobile Plant Asset Management simplifies and optimizes commissioning and maintenance workflows. Field Xpert is an industrial PDA with integrated touchscreen for commissioning and maintaining field devices in explosion hazardous and safe areas*. It allows efficient configuration of FOUNDATION fieldbus, HART 5/6/7 and WirelessHART devices via Bluetooth and/or Wifi interfaces. From an application oriented view, Field Xpert is the mobile platform for Endress+Hauser Plant Asset Management applications. *Field Xpert SFX350 (save areas) and Field Xpert SFX370 (explosion-hazardous areas).
-
Simple device access, optimized device configuration, adaptable configuration templates and clear configuration reports save time during commissioning
-
Explicit device documentation saves time during device exchange, transparent maintenance, diagnosis and trouble-shooting information increases the safety and availability of the plant
-
High resolution full-VGA touchscreen (640x480 Pixel) makes operation simple
-
High ingress protection and explosion protection allows Field Xpert to be used in all industries
-
Seamless integration of calibration data into calibration management solutions saves time and increases the quality of device calibrations
-
Mobile phone, camera (send as-is pictures immediately by email), 1D laser scanner (barcode), 2D imager (e.g. DataMatrix-Code, QR-Code) and RFID as standard or option increases labor productivity
-
Open, vendor-independent operating system allows additional Asset Management applications to be run
Field Xpert is the mobile platform for Endress+Hauser Plant Asset Management applications. RFID head modules allow Field Xpert functionality to be easily extended – one basis for efficient round tour management and asset inspection.
Maintenance activities are well supported by access to advanced field device diagnostics and meaningful user interaction with diagnostic categories and clear remedies.
Remote connectivity to maintenance experts via WLAN, WWAN and phone.
-
Measuring principle
Device configurator
-
Function
Ruggedized mobile computer (PDA) for commissioning and maintenance of field devices. Efficient device configuration and device diagnostics for HART and FOUNDATION fieldbus devices in Ex- and Non Ex-areas.
-
CPU
OMAP Multi Core Processor 1GHz
-
Memory
512 MB RAM, 1 GB Flash Memory,
16 GB Micro-SD Card (up to 32 GB possible) -
Power supply
Lithium-ion battery, IEEE 1725 (removable, rechargeable), 3,7 V,4000 mAh
-
Dimensions (WxHxD)
Standard:
225 mm x 85 mm x 58 mm
(8,8" x 3,3" x 2,3")
With optional head module:
249 mm x 85 mm x 58 mm
(9,8" x 3,3" x 2,3") -
Screen size
High resolution 3.5 inches touchscreen display, Gorilla glass protected, ambient light sensor, LED backlight, automatic screen rotation (accelerometer).
-
Resolution
VGA (640 x 480 pixels), 65.536 colors
-
Communication interface
• USB
• Wireless LAN
• Bluetooth
• Infrared -
Operation
Operating system:
Microsoft Windows Embedded Handheld 6.5.3,
German or English (depending on the order) -
Configuration
Configuration software:
• Device Xpert HART
• Device Xpert FOUNDATION fieldbus -
Optional
• Wireless WAN
• GPS -
Certificates
Drop specification:
MIL-STD 810G
Electromagnetic Compatibility:
Interference conformance to
• EN 55022: 2006 + A1: 2007
• CISPR 22: 2006-03 (Class B)
Immunity conformance to
• EN 55024: 1998 + A1: 2001 + A2: 2003
• CISPR 24: 1998 + A1: 2001 + A2: 2003
Ingress protection:
IP65, NEMA Type 4
Explosion protection:
Intrinsically safe
II 2G Ex ia IIC T4 Gb IP64
II 2D Ex ia IIIC T135°C Db IP6X
CE Mark
Hazardous area approval:
• ATEX (Zone 1) IIC T4
• ATEX (Zone 21) IIIC IP 64
• IECEx (Zone 1) IIC T4
• IECEx (Zone 21) IIIC IP 64
• NEC Class I, Division 1, A–D T4
• NEC Class II, Division 1, E–G T4
• NEC Class III, Division 1
Telecommunication approval:
FCC, CE
Electrical safety:
UL (DEMKO), cULus listed
