Scentroid - Model SC300 -Mobile Portable Olfactometer Device
The SC300 Portable Olfactometer will allow a full odour lab to be deployed anywhere in a matter of minutes. Just plug in the SC300 and start analyzing odours to all international standards.

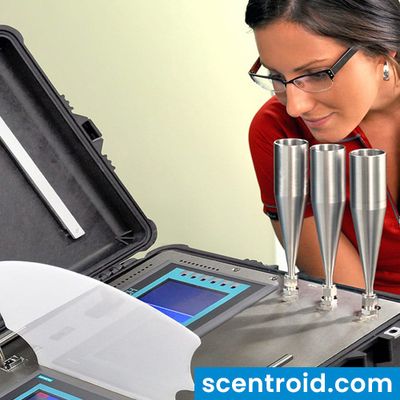

Scentroid’s SC300 Portable Olfactometer is the world’s most advanced mobile olfactometer. It allows for a full odour lab to be deployed anywhere in a matter of minutes. There is no need for dedicated lab space – Simply plug in the SC300 and start analyzing odours to all international standards. The SC300 can perform any odour test mode you require including a true 3 port triangular forced-choice as well as binary, hedonic tone, and direct presentation.
SC300 Portable Olfactometer Deployment:
Deployment only requires connecting the power cord to a standard 120/240 VAC outlet and connecting the pneumatic hose between the air supply subsystem and the control subsystem. The air sub-system provides clean air regardless of ambient air through its incorporated oil-free pump, HEPA filter, carbon filter, no-maintenance membrane air dryer, and regulator. The test administrator can then view live results, analyze data, and control the test using the dedicated admin. station with the included Siemens 8” touch screen.
Scentroid Mobile Air Supplier:
The Scentroid Mobile Air Supply is designed to provide compressed air supply for a variety of Scentroid products out in the field. This is ideal due to the fact that it produces no oil in the airflow, and therefore can be used as an independent air supply when the oil in the airflow is often an issue. The compressed air from the tank is monitored from the pressure meter, and if it rises more than 8 bar (approximately 116 psi) the tank will automatically cut off the pressure control switch. When the pressure inside the tank lowers to 6 bar (approximately 87 psi) then the power is turned back on.
SC300 Portable Olfactometer Compressed Air System:
The compressed air is passed through a cooling system to prevent overheating after prolonged use. Fans are used on either side of the container to ensure air is passing through, allowing the air supply to work while the lid is closed. A final gauge is used to regulate the airflow being used and is ideally set at 80 psi. The final step is to attach the product to the outlet and turn on the main switch.
Use the SC300 Portable Olfactometer to:
- Conduct on-site odour measurements
Determine odour concentration in OU / m3, as per the recognized EN13725 standard - Conduct a hedonic tone (pleasant to unpleasant) assessment of odour emissions
- Conduct panellist training and N. Butanol screening
- Determine odour concentration in accordance with recognized Chinese and Japanese standards (GB/T14675-93)
- Employ binary, triangular, yes/no, and direct presentation methods
- Conduct odour assessments from petrochemical, oil refineries, and agricultural sources due to unparalleled contamination control technology
Military Standard for Durability and Mobility
Built into two rugged pelican cases. Designed to be waterproof and shockproof to Military standards MIL C-4150J & DefStand 81-41
Patented Control Algorithm
A unique control algorithm (Patent Pending) optimizes performance and dilution accuracy while minimizing sample consumption
International Standards
Adheres to all international olfactometry standards: EN13725:2003, ASTM E679-04, NVN2820, VDI 3881, GB/T14675-93
Automated Purging
All mass flow controllers are automatically purged using Scentroid’s automated purging technology
Unprecedented Dilution Range
Dilution range of 8-131,072 (2^3 – 2^17) with variable step size to a max. of 1000 steps in-between surpasses any other commercially available mobile olfactometer
Deploys in Minutes
Deployment simply requires connecting the power cord to a standard 120/240 VAC outlet and connecting the air supply hose
- Testing Modes Triangular Forced Choice, Binary Forced Choice, Direct Presentation, Hedonic Tone, GB Source, and GB boundry
- Dilution Principle Venturi Eductor
- Control Mechanism Mass flow controllers on both clean air and sample air intake
- Dilution Range 2^3 to 2^17 optional range extemsion
- Dilution Steps Variable
- Accuracy Error less than %5
- Pres. Flow Rate Variable: 5 lpm to 30 lpm
- Presentation Velocity 0.25 m/s at 20lpm
- Response time 0.2 sec
- Sample Delivery Adjustable
- Control Siemens PLC
- Computer Interface Ethernet Network/USB
- Display and Interface Siemens industrial 8” full color touch-screen Admin and separate industrial 5″ for panelist
- Data Processing Test data including end-criteria and statistics processed through PLC
Administrator:
- Panel Size: 1 – 8 panellists can participate in a single test, as specified by the administrator
- Panel Order Setup: Users can either run 1 test at a time and rotate to the next panellist, or conduct the full test sequence then rotate
- Testing Modes: Triangular forced choice, binary forced choice, direct presentation, hedonic tone, GB source, and GB boundary
- Multiple Odourants: 4 – 8 odourant capabilities (must be specified when ordering) allowing for mixing
- Re-calibration: Activated through admin screen
Dilution:
- Dilution Principle: Venturi educator
- Control Mechanism: Mass flow controllers on both clean air and sample air intake
- Dilution Range: 2^3 to 2^17 optional range extension
- Dilution Steps: Variable
- Accuracy: 95%
Air Flow:
- Total Air usage: 70 Litres per minute at 80 – PSI of clean air
- Pressure Flow Rate: Variable, 5 litres per minute to 30 litres per minute
- Presentation Velocity: 0.25 m/s at 20 litres per minute
- Response Time: 0.2s
- Sample Delivery: Adjustable
Control:
- Control: Siemens PLC
- Computer Interface: Ethernet Network / USB
- Display: Siemens industrial 8″ full-colour touch-screen for admin and a separate industrial 5″ screen for panellists
- Data Processing: Test Data including end-criteria and statistics processed through PLC
