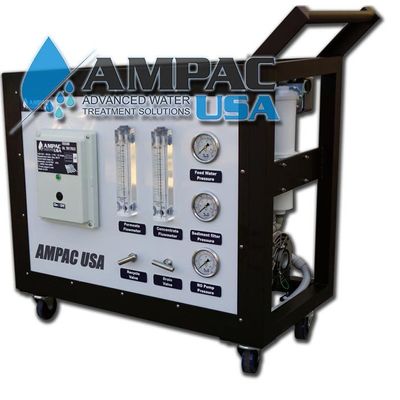

Ampac - Model TR-300 -Mobile Reverse Osmosis System 300 GPD
FromAmpac USA
The AMPAC USA Emergency Portable Reverse Osmosis 300 GPD - TR-300 Unit that has been specifically designed for Disaster Preparedness Applications, where large amounts of pure water are required at the cheapest running costs. The TR-300 will Produce up to 12.5 GPH (Gallons per Hour) of Pure water.
Most popular related searches
reverse osmosis system
reverse osmosis
industrial reverse osmosis system
mobile reverse osmosis system
pure water
military water purification
brackish water membrane
FRP pressure vessel
industrial reverse osmosis
pure water system
- Production GPD: 300 Gallons Per Day
- Production LPD: 1350 Liter Per Day
- 4” x 10” Sediment Pre-Filter 20 Micron
- 4” x 10” Carbon Block Pre-Filter 5 Micron
- Rotary Vane High-Pressure Jet Booster Pump with Safeguards
- 4" x 20" Activated Coconut Shell Post-Filter to improve Taste, Odor, and Clarity
- Ultra-Violet Disinfection Sterilizer to sterilize pure water output
- Stainless steel liquid-filled pressure gauge
- Low pressure cut off switch
- 2.5” x 21” Stainless Steel Pressure Vessels
- 2.5” x 21” Brackish Water Membrane Elements.
- Stainless Steel System Pressure Control
- Heave Duty FRP Pressure Vessel
- On/Off Main Power Switch
- Powder-coated, Heavy Duty Fully Welded Light Cart on Wheels
- 12 Month Warranty.
- Frame: Powder Coated One Piece Aluminum Dolly
- Membranes: (1) ea TFC 2.5" x 21"
- Vessels: 2.5" x 21" FRP
- Pump: Procon Rotary Vane with Safeguards (SS option)
- Gauges - Glycerin Filled: Booster Pump PSI
- Valves: System Pressure
- Switches: Low-Pressure Cutout, High-Pressure Cutout
- Electrical: 110 or 220 V, 50 or 60 Hz, 1 phase
- Motor: 1/3 Hp - 1725 rpm
- Connections: 1/2" Quick Tubing Connectors
- Capacity per US Gallon: 12.5 gal per hr - 300 gals per day
- Capacity per Liters: 56.2 Liters per min - 1350 Liters per day
- Operating Pressure: 170 - 225 psi
- Typical Recovery: 40% - 75%
- Typical Rejection: 99.2%
- Max Feed TDS - Hardness: 2500 ppm - 15 grains For Municipal Water Design
- Max Feed TDS - Hardness: 10,000 ppm - 25 grains For Brackish Water Design
- Max Feed Temp: 113 degrees F
- Feed pH Range: 3 -11
- Max Chlorine: less than 0.1 ppm
- Dimensions: 24" wide x 28" deep x 34" ht.
