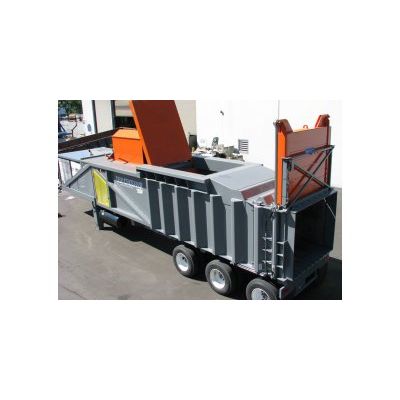

SSI - Model 1800 MSC -Mobile Scrap Compactor
SSI`s 1800 Mobile Scrap Compactor is built for rapid loading and compaction of bulky materials, consistently delivering bales at ideal density for auto shredders. SSI`s mobile scrap compactor, aptly called "The Crusher™, was engineered specifically for the ever-changing needs of today’s scrap and recycling markets. Process tin and white goods more efficiently and reliably at rates of 30 tons per hour with 4:1 reduction ratio from remote locations with this mobile scrap metal compaction system.
Cylinder Diameter 356 (14 in)
Bale Size 1.7 x 2.1 x 2.4 m (57⁄12 x 7 x 8 ft)
Bale Weight 10 tons
Compaction Force 200 tons
Cycles Per Bale 20 min
Power 164 kW (220 hp) CAT C7 Diesel
Tons Per Hour 30 tph
Control Panel Auto or Manual
Overall Dimensions
(H x W x L) 4.1 x 2.6 x 14 m
(13½ x 8½ x 46 ft)
Shipping Weight 49,895 kg (110,000 lbs)
HPU Operating Pressure 18,615 kPa (2,700 psi)
HPU Reservoir 1,893 L (500 gal)
HPU Hose Connections SAE "O" Ring
PU Cooling Air/Oil on Engine Pkg
HPU Overall Dimensions On-Board / Mobile
Scales Type Electronic
Scales Load Cells 2 Front & 2 Rear
Accuracy +/- 1%
Overall Dimensions
(H x W x L) 4.1 x 2.6 x 14 m
(13½ x 8½ x 46 ft)
Shipping Weight 49,895 kg (110,000 lbs)
HPU Overall Dimensions On-Board / Mobile
- Electronic weigh system ensures uniform pre-weighed bales for maximum legal loading.
- Variable compaction control adjusts material density and bale length to fit your trailer or container fleet.
- Full length constant density compaction force provides equal weight distribution throughout payload length.
- Ejection system accurately positions loads to achieve optimum and legal weight distribution.
- Free standing compacted loads allow you to use lighter tare weight hauling equipment, resulting in increased net payloads.
