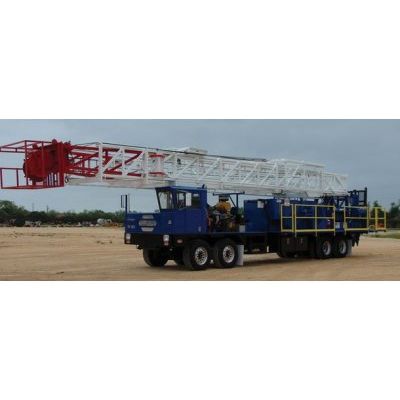

Dragon - Model Cooper SP400 -Mobile Servicing Rigs
Service Depth: 14,500 ft (2-1/2` tubing). Workover Depth: 10,500 ft (2-7/8` DP). Max. static hook load: 205,000 lbs (6 lines). Clear Height, Mast: 96` Rated Horsepower, Engine: 350 HP/2,200 rpm. Height, Tubing Board to ground: 55`-10`. Height, Rod Board to ground: 78`-6`. Carrier: 4 axle - two steer and two drive axles. Diameter, Wireline: 1`. Road Traveling dimensions: 56`-5` long x 9`-4` wide x 13`-8` high. Carrier Dimensions (excluding mast): 38` long x 9`4` wide x 9`-8` high.
Most popular related searches
- Maximum Speed: 55 mph Diesel Engine Specifications: (other options available)
- Traveling Weight: 75,000 lbs estimated
- (not including drill line, sand line, tools, block)
- Model: Caterpillar C9 ACERT Rated Horsepower: 350HP (2,200rpm)
- Maximum Torque: 1,148 Ib.ft (l,400rpm)
- Transmission Specifications: (other options available)
- Axles: Four (two steer and two drive)
- Rating-Steering axles (two) 10 ton capacity (each)
- Drop Box to Right Angle Drive Gear Box
- Drop Box to Rear Drive Axles: Spicer 1710 dynamically balanced drive shaft
- Right Angle Gear Box Sand Drum: 1-3/4" double row chain
- Sand Drum Main Drum: 1-3/4" double row chain
- Drawworks System: Right Angle Drive (integrated torque tube)
- Ratio: 2.5:1 Dragon Products 96-205-6-T
- Mast: Certification: API 4F, 3rd Edition Clear Height: 96`
- Maximum static load: 205,000 lbs on 6-lines
- 180,000 lbs on 4-lines
