HC - Mobile Test Separator with ESD and Choke Manifold

SHARE

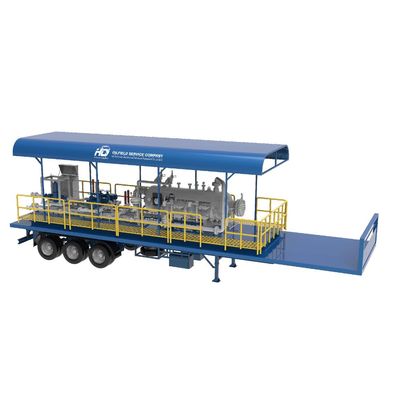

Current model of trailer-mounted packages is designed to accommodate conventional test separator, equipment of emergency shutdown system, choke manifold and data header. Current mobile separator with ESD and choke manifold allow fast mobility, safe and efficient well testing. As show in 3D modeling, current model requires lighter trailer base as HC considered light frame for test separator. Trailer can be longer or shorter based on the client’s operational requirements. Surface well test trailer package (SWT Package) or trailer mounted surface well test system is a special system of well test equipment designed to separate well fluids into two/three/four phases, then accurately measure behavior of each phase after separations.

Most popular related searches
choke manifold
well testing equipment
metering ball valve
relief valve
safety monitoring
surface testing
level gauge
control ball valve
safety system
surface safety

Test Separator Skid is in the center of any well testing operation. Test separator separates well fluids into two/three/four phases. Each phase line consists of control valves, meters, ball valves and other components specified in the technical proposal. As the safety devices, two or three relief valves are installed on the separator vessel and inlet manifold (Note: confirm with HC required quantity of relief valves and place of installation). High/Low- or High-Pressure Pilots are also can be used as additional safety measures (Note: confirm if pilots are included in the scope). Pressure Vessel is made either made of standard service or sour services construction steel depending on the client’s requirements. Pressure Vessel has multiple nozzles to connect level gauges, level controllers, pressure and temperature gauges, instruments and other parts specified in technical proposal and P&ID.

Emergency Shutdown System (ESD System) consists of multiple equipment and parts are important parts of safety measures during well testing and production. ESD system consists of ESD control panel, 5K/10K/15K Surface Safety Valve (SSV), High/Low- or High-Pressure pilots, Pneumatic SS Pipes, hydraulic hoses, emergency pushbuttons. ESD Control Panel provides hydraulic pressure to actuators or SSV and SSV of Flowhead. ESD Control Panel is equipped with oil tank, pneumatic lines, pneumatic-hydraulic pump or hand pump, gauges and other parts which is specified in technical proposal.

5K/10K/15K Choke manifold is 4-valve or 5-valve assembly, which includes one positive and one adjustable choke. Choke Manifold is designed to reduce flow (pressure) of well stream, protecting downstream equipment.

Data Header is special pipe with unions and ports, designed to monitor pressure, temperature, and allow operator to inject chemical to the well fluids.

Test pump is designed to provide necessary pressure to the surface well test equipment before starting operation. Confirm with HC brand name or type of test pump required for your project.

Trailer base is designed to handle payload of 20/25/30 tons. For longer and heavier trailer mounted systems, please check the website of HC Petroleum Equipment.
