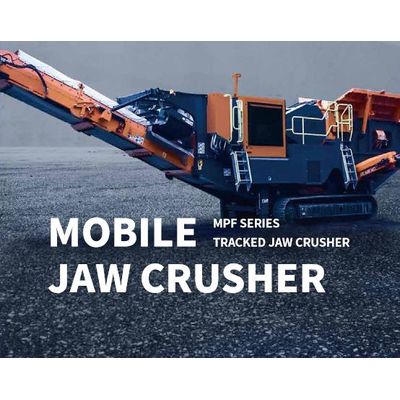

JONO - Model MPF Series -Mobile Tracked Jaw Crusher

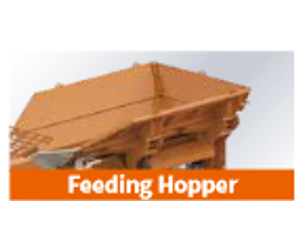

Hydraulic folding hopper with high wear resistant Inner liner. Unfolds during operation to increase capacity and folds during transport to meet transport requirements.

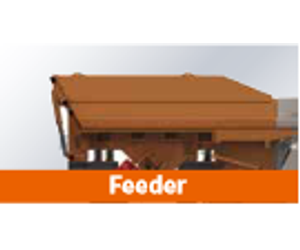

The feeder has a pre-screening function for continuous feeding of raw materials; the feeder is double deck with a heavy duty vibrating grizzly on the top deck and three sizes (50mm.75mm, 100mm) available; the bottom deck is a mesh screen or rubber plate, the screen is easy to replace; frequency control, and the feeding speed can be controlled automatically or manually according to the load detection of the Jaw shredder.

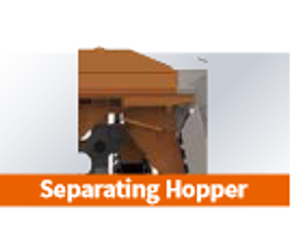

The undersized material of the feeder screens can be optionally conveyed to the main conveyor and the side conveyor via the dividing hopper. It can reduce the amount of fine crushed material throughput.

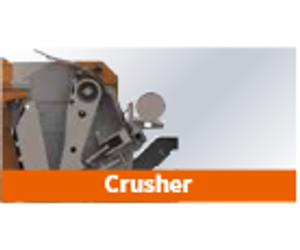

Strong power, high reliability and overload protection; wide range adjustment of discharge opening; special steel processing of the box body and wear-resistant lining on the inside; hydraulic adjustment of the discharge opening (CSS); the jaw plate is made of high-force cast steel, with high strength, good wear resistance, long life and easy maintenance and replacement.

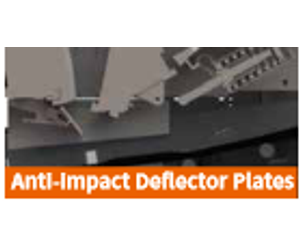

Prevent direct Impact of larger materials and the damage caused by steel bars.

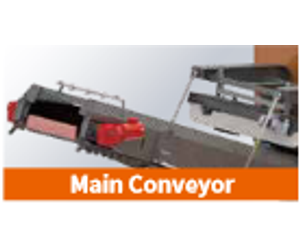

The design of the wear-reslstanl liner at the Inlet and the rubber buffer bar under the belt; the head can be folded during transport, reducing transport dimensions and lowering transfer costs.

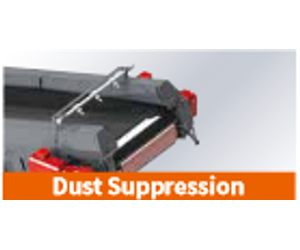

Dust suppression are effective in reducing dust emission and air pollution.

Dust suppression are effective in reducing dust emission and air pollution.

Come wilh cleaner lo avoid material adhesion; Discharge outlet can be left or right; Collapsible for shipping size.

Rate earth,neodymium,iron, boron permanent magnet powerful Iron remover.effectlve removal of Iron Impurities.
